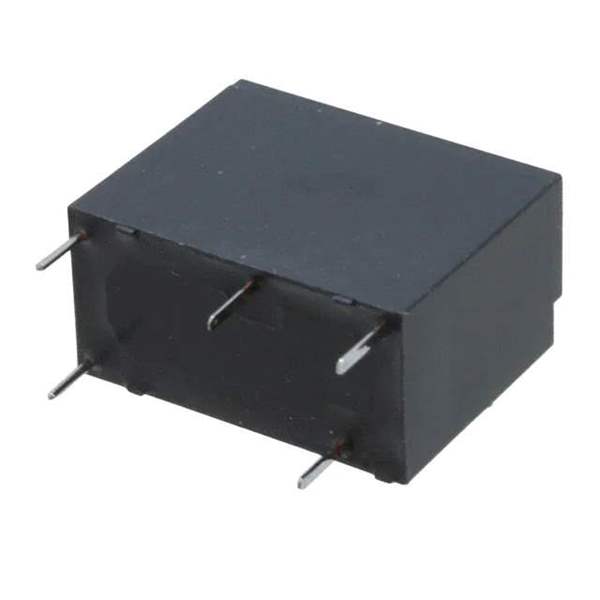

ALQ112 Real Image
Same model may have multiple batches, images only for reference.

ALQ112

Part No ALQ112
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 10A 12V / General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series ALQ
Package Box
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 10 A
Switching Voltage 250VAC - Max
Coil Current 33.3 mA
Coil Type Non Latching
Termination Style PC Pin
Coil Insulation Class B
Must Operate Voltage 9 VDC
Must Release Voltage 0.6 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number ALQ11
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 849590-ALQ112
Ultra Librarian 3D Model Ultra Librarian ALQ112 CAD Model

Description

The Panasonic ALQ112 is a power relay designed for general-purpose applications by Panasonic.

  • Contact Form: SPDT (1 Form C)
  • Contact Material: Silver nickel (AgNi)
  • Switching Voltage: 250VAC (maximum)
  • Coil Voltage: 12VDC
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3 mA
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Contact Rating: 10 A
  • Mounting: Through hole
  • Temperature Range: -40°C to 85°C
  • Packaging: Box
  • Standard Package: 100 pcs
  • Product Status: Active
  • Series: ALQ
