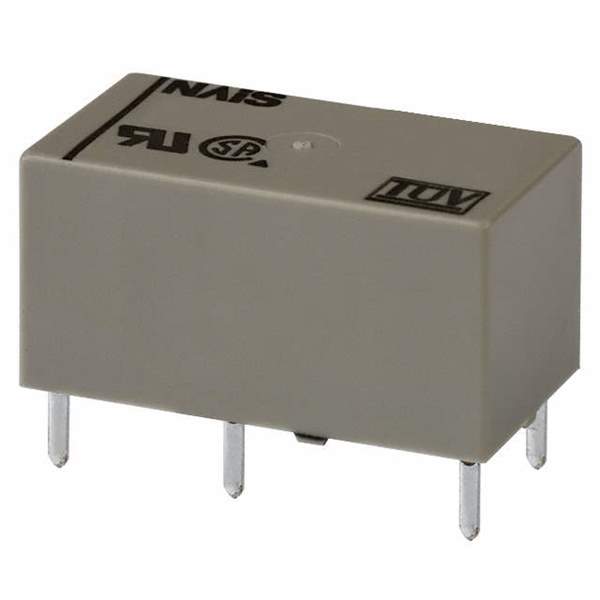

DSP1-DC12V-F Real Image
Same model may have multiple batches, images only for reference.

DSP1-DC12V-F

Part No DSP1-DC12V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 5A 12V
Datasheet
DSP1-DC12V-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 25mA
Coil Voltage 12VDC
Contact Form DPST-NO/NC (1 Form A and B)
Contact Rating (Current) 5A
Switching Voltage 250VAC, 30VDC - Max
Turn On Voltage (Max) 9.6 VDC
Turn Off Voltage (Min) 1.2 VDC
Operate Time 10ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 300 mW
Coil Resistance 480 Ohms
Temperature Range - Operating -40°C to 65°C
Win Source Part Number 014904-DSP1-DC12V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Ultra Librarian 3D Model Ultra Librarian DSP1-DC12V-F CAD Model

Description

DSP1-DC12V-F

The DSP1-DC12V-F is an efficient single pole relay tailored for use with 12V DC power sources. This relay offers precision control and high reliability for essential switching applications, making it a versatile asset in numerous projects.

  • Applications:
    • Automotive electronics
    • Remote control systems
    • Lighting management solutions
  • Features and Benefits:
    • Robust construction for extended service life
    • Low power consumption when activated
    • Fast switching capabilities
  • Additional Details:
    • Designed to minimize electrical arcs
    • Offers substantial endurance for repetitive operations
