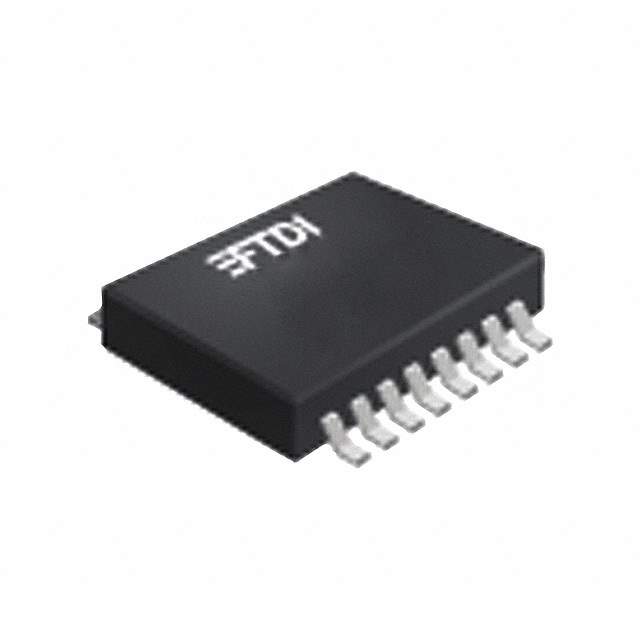

The FT230XS-U is a compact, bridge chip designed by FTDI, Future Technology Devices International Ltd, which specializes in converting signals from USB to UART (Universal Asynchronous Receiver/Transmitter). This highly efficient IC is a crucial component for modern communication and serial interface applications, offering a simple and reliable solution for serial data transfer through USB.

Key Features

• USB 2.0 Full Speed Compatible: This device complies with the USB 2.0 standard, ensuring full-speed data transfer rates and broad compatibility with existing USB technology.
• Integrated Clock Circuit: Eliminating the need for external oscillators, the FT230XS-U includes an integrated clock generator that simplifies the design and reduces the overall bill of materials.
• Low USB Bandwidth Consumption: The device is designed to use minimal USB bandwidth to ensure efficient communication, even when USB traffic is high.
• UART Interface Support: It supports data transfer rates from 300 baud to 3 Mbaud at TTL levels, making it versatile for a wide range of applications.
• Driver Free Operation: For most versions of Windows (10 and above), the device can be installed without the need for an external driver, streamlining the user experience.
• Internal EEPROM: The built-in EEPROM allows device configuration and USB ID customization, providing flexibility for system integrators.
• Low Operating and Suspend Current: The FT230XS-U has been designed with power efficiency in mind, ensuring low power consumption during operation and suspend modes.

Applications

The FT230XS-U is an ideal choice for upgrading legacy peripherals to USB, interfacing MCU-based designs to USB, and for portable devices, such as PDAs, digital cameras, and other gadgets requiring USB connectivity. Its compact design and comprehensive feature set make it suitable for a broad range of applications in the industrial, telecommunications, and consumer electronics sectors.
