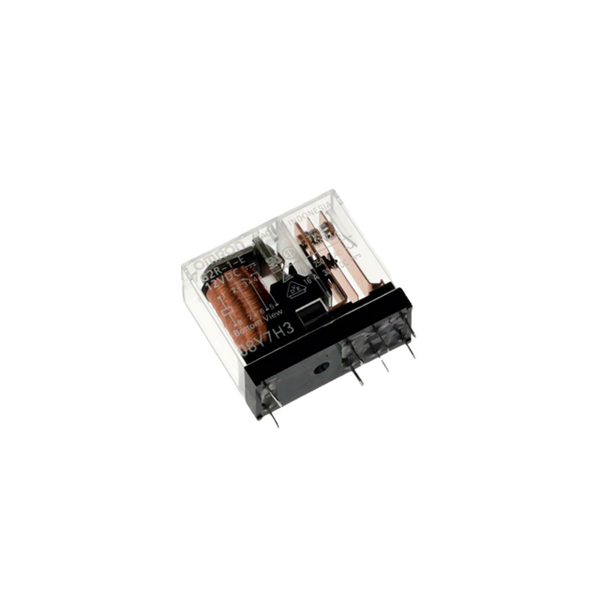

G2R-1-E-DC12 Real Image
Same model may have multiple batches, images only for reference.

G2R-1-E-DC12

Part No G2R-1-E-DC12
Manufacturer Omron
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPDT 16A 12V
Datasheet
G2R-1-E-DC12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Omron Electronics Inc-EMC Div
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 43.6mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 16A
Switching Voltage 380VAC, 125VDC - Max
Turn On Voltage (Max) 8.4 VDC
Turn Off Voltage (Min) 1.8 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 530 mW
Coil Resistance 275 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 037580-G2R-1-E-DC12
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian G2R-1-E-DC12 CAD Model

Description

Omron's G2R-1-E-DC12 relay is a through-hole, sealed, flux-protected, general-purpose relay with a single-pole double-throw (SPDT) configuration.

  • Coil Voltage: 12VDC
  • Coil Resistance: 275 Ohms
  • Operating Temperature: -40°C to 70°C
  • Package: Trays
