Diodes Incorporated ZXTP722MATA - Overview

The ZXTP722MATA from Diodes Incorporated is a high-performance PNP transistor designed for use in a variety of electronic applications. This transistor is part of the ZXTP series, which is well-regarded for its efficiency, reliability, and versatility. The ZXTP722MATA is particularly suited for high-speed switching and amplification tasks in industrial, commercial, and consumer electronic products.

Key Features

• High Current Capability: This transistor can handle continuous collector currents up to 2A, making it suitable for driving moderate to high-power loads.
• Low Saturation Voltage: The ZXTP722MATA has a low collector-emitter saturation voltage (V_CE(sat)), which enhances its efficiency by minimizing power loss during operation.
• High Power Dissipation: With a power dissipation of 2W, this device can withstand higher thermal stresses, ensuring reliable performance in challenging conditions.
• Complementary NPN Type Available: For designs that require complementary pair configurations, Diodes Incorporated offers a corresponding NPN type transistor that pairs well with the ZXTP722MATA.

Applications

• Power management circuits
• Linear amplification stages
• Switching regulators
• Motor control circuits
• Signal processing

Package and Environmental Compliance

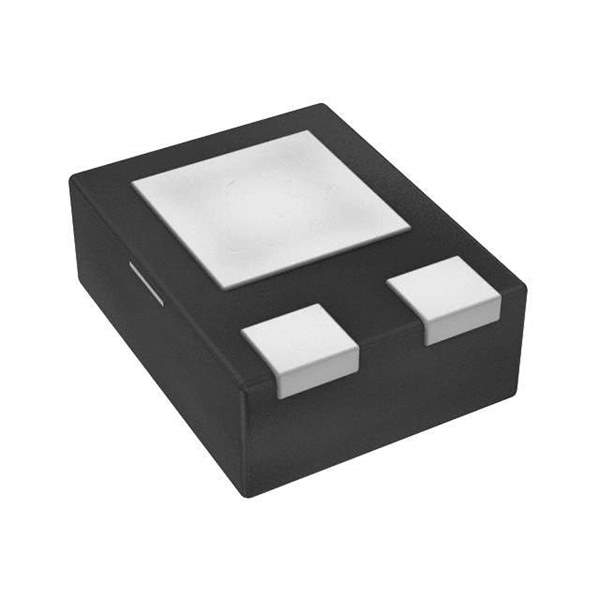

The ZXTP722MATA comes in a compact SOT89 surface-mount package, which is ideal for space-constrained applications. Its small footprint and low profile make it an excellent choice for portable and miniaturized electronics. Additionally, the product is RoHS compliant, meaning it meets the European Union's directives on the restriction of hazardous substances, making it suitable for use in environmentally sensitive applications.

Conclusion

Overall, the ZXTP722MATA PNP transistor by Diodes Incorporated is a robust component that offers designers a blend of performance, efficiency, and reliability. Whether it's for power management, amplification, or control applications, this transistor is a solid choice for those looking to optimize their electronic designs.
