Product Overview: ESD9X5.0ST5G by ON Semiconductor

The ESD9X5.0ST5G is an advanced ESD protection device from ON Semiconductor, designed to safeguard sensitive electronic components from electrostatic discharge (ESD) and other transient voltage events. This robust component is a must-have for any circuit where the risk of sudden voltage spikes can compromise the integrity of the system.

Key Features

• Transient Protection: The ESD9X5.0ST5G offers excellent transient voltage suppression with a clamping voltage low enough to protect sensitive circuits from ESD strikes, ensuring the reliability and longevity of your electronic devices.
• Low Capacitance: With its low loading capacitance, this device is particularly suited for protecting high-speed data lines without compromising signal integrity, making it ideal for applications such as USB and HDMI interfaces.

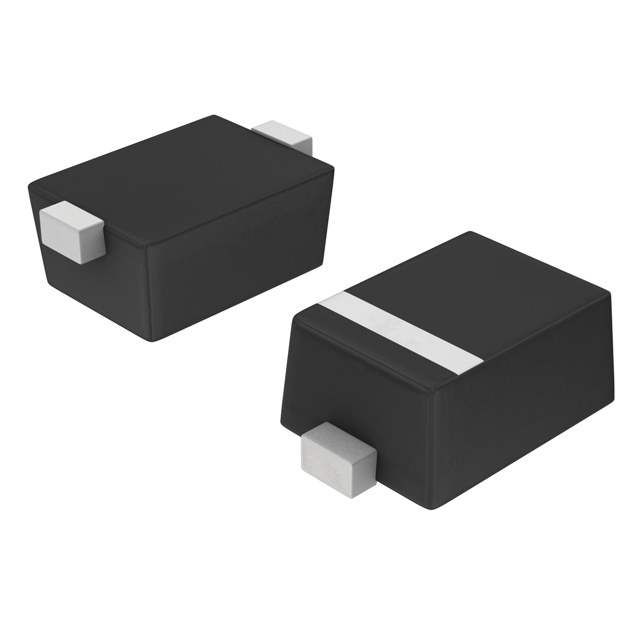

• Small Package Size: The component is housed in a compact SOD-923 package, which is optimized for space-constrained applications, allowing designers to incorporate ESD protection into their designs without worrying about board space.
• High Reliability: Manufactured by ON Semiconductor, a leader in the semiconductor industry, the ESD9X5.0ST5G is built to meet high-quality standards, providing a reliable solution for ESD protection.

Applications

The ESD9X5.0ST5G is versatile and can be used across a wide range of applications where ESD protection is critical. Some common applications include:

• Portable Electronics
• Computer Peripherals
• Consumer Electronics
• Network Devices
• Telecommunication Systems

Technical Specifications

The device features a 5.0V working voltage, which is suitable for protecting many standard logic level and power supply interfaces. It is characterized by a fast response time to ESD strikes, ensuring that the protected components are shielded promptly from any harmful voltage transients.

In summary, the ESD9X5.0ST5G from ON Semiconductor is a top-of-the-line solution for ESD protection, combining low capacitance, high reliability, and a compact form factor, making it an ideal choice for designers looking to enhance the durability of their electronic products.
