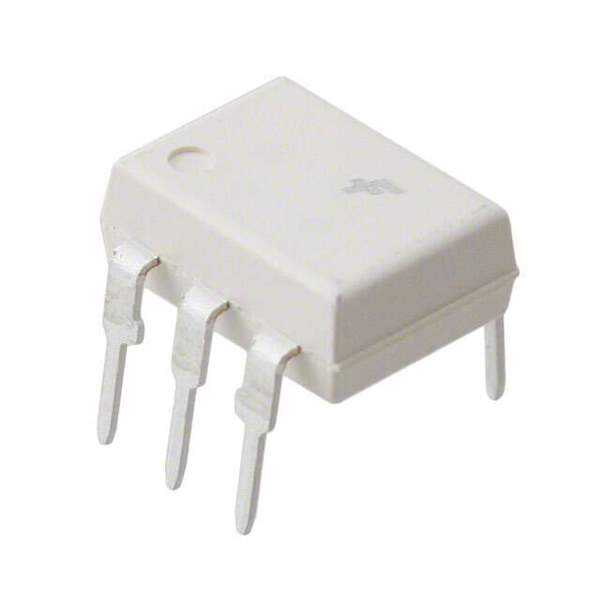

MOC3020M Real Image
Same model may have multiple batches, images only for reference.

MOC3020M

Part No MOC3020M
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Triac, SCR Output
Description OPTOISOLATOR 4.17KV TRIAC 6DIP
Datasheet
MOC3020M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Output Type Triac
Zero Crossing Circuit No
Number of Channels 1
Isolation Voltage 4170Vrms
Voltage - Off State 400V
Current - LED Trigger (Ift) (Max) 30mA
Current - Hold (Ih) 100μA (Typ)
Forward Voltage 1.15V
Continuous forward current- Max 60mA
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Case / Package 6-DIP
Approvals UL
Win Source Part Number 024169-MOC3020M
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Industrial, Motor Drive & Control, Consumer Electronics
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian MOC3020M CAD Model

Description

The MOC3020M is an isolator manufactured by Fairchild/ON Semiconductor.

  • Package: Tube/rail
  • Approval: UL
  • Mounting: Through-hole
  • Output Type: Triac
  • Forward Voltage: 1.15V
  • Off-State Voltage: 400V
  • Channel Count: One
  • Isolation Voltage: 4170Vrms
  • Current Hold (Ih): 100μA (Typ)
  • Zero-Crossing Circuit: No
  • Static dV/dt (Min): -
  • Current LED Trigger (Ift) (Max): 30mA
  • Turn-On Time: -
  • Temperature Range: -40°C to 85°C
  • Case/Package: 6-DIP
  • Continuous Forward Current: 60mA
  • Applications: Industrial, motor drive & control, and consumer electronics
