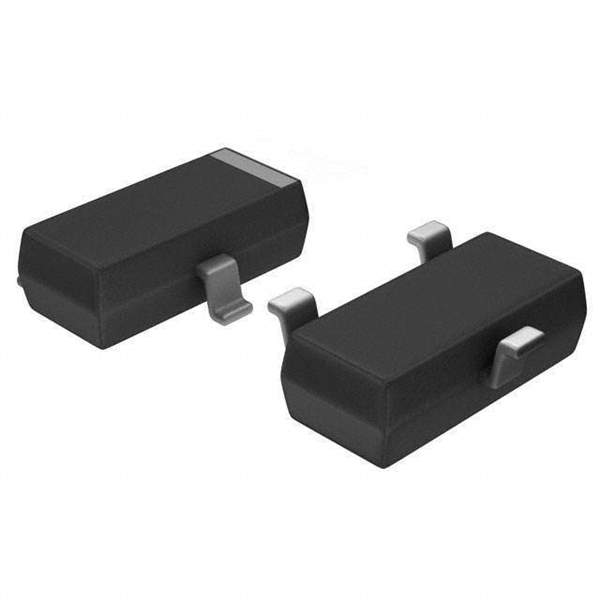

UDT23A15L02 Real Image
Same model may have multiple batches, images only for reference.

UDT23A15L02

Part No UDT23A15L02
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS ESD, SOT-23, 15V, 30V, REEL / 30V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23
Datasheet
UDT23A15L02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr YAGEO
Package Tape & Reel (TR)
Type Zener
Voltage - Breakdown (Min) 16.7V
Current - Peak Pulse (10/1000µs) 8A (8/20µs)
Power - Peak Pulse 400W
Power Line Protection No
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Standard Package 3,000
Win Source Part Number 985714-UDT23A15L02
Capacitance @ Frequency 0.8pF @ 1MHz
Applications USB
Voltage - Clamping (Max) @ Ipp 30V
Voltage - Reverse Standoff (Typ) 15V (Max)
Bidirectional Channels 2
Series UDT23AXXL02
Other Names 13-UDT23A15L02TR
Ultra Librarian 3D Model Ultra Librarian UDT23A15L02 CAD Model

Description

The YAGEO UDT23A15L02 is a bidirectional Zener type TVS diode with two channels.

  • Voltage Rating (max) for Reverse Standoff: 15V
  • Breakdown Voltage: 16.7V
  • Power Peak Pulse: 400W
  • Current Peak Pulse: 8A (8/20µs)
  • Capacitance: 0.8pF @ 1MHz
  • Mounting: SMD (SMT)
  • Application: designed for USB applications
  • Temperature Range for Operating: -55°C to 150°C (TJ)
