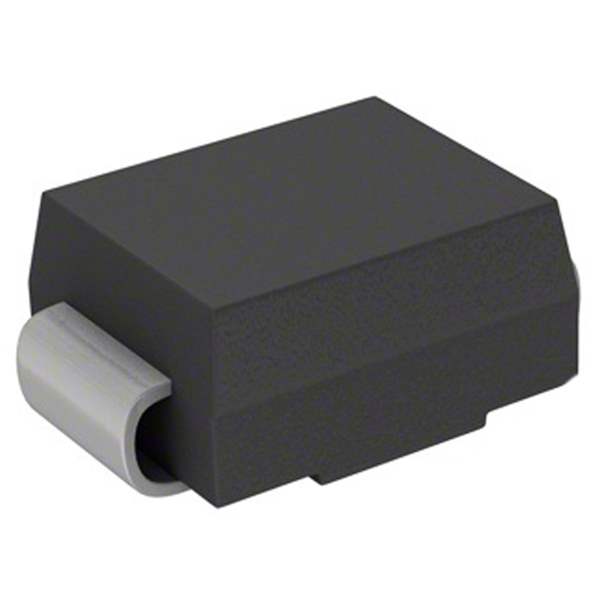

SMBJ12CA/TR13 Yageo
Same model may have multiple batches, images only for reference.

SMBJ12CA/TR13

Part No SMBJ12CA/TR13
Manufacturer Yageo
Catalog TVS - Diodes
Description TVS DIODE 12VWM 19.9VC DO214AA / 19.9V Clamp 30.2A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
Datasheet
SMBJ12CA/TR13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr YAGEO
Series SMBJ
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 12V
Voltage - Breakdown (Min) 13.3V
Voltage - Clamping (Max) @ Ipp 19.9V
Current - Peak Pulse (10/1000µs) 30.2A
Power - Peak Pulse 600W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency -
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1361883-SMBJ12CA/TR13
Ultra Librarian 3D Model Ultra Librarian SMBJ12CA/TR13 CAD Model

Description

The YAGEO 1361883-SMBJ12CA/TR13 is a transient voltage suppressor diode with a reverse standoff voltage of 12V and a breakdown voltage of 13.3V.

  • Manufacturer: YAGEO
  • Reverse Standoff Voltage: 12V
  • Breakdown Voltage: 13.3V
  • Clamping Voltage: 19.9V @ 30.2A
  • Mounting Type: Surface Mount
  • Package / Case: DO-214AA (SMB)
  • Operating Temperature: -55°C to 150°C
  • Application: General Purpose
  • Power Rating: 600W
