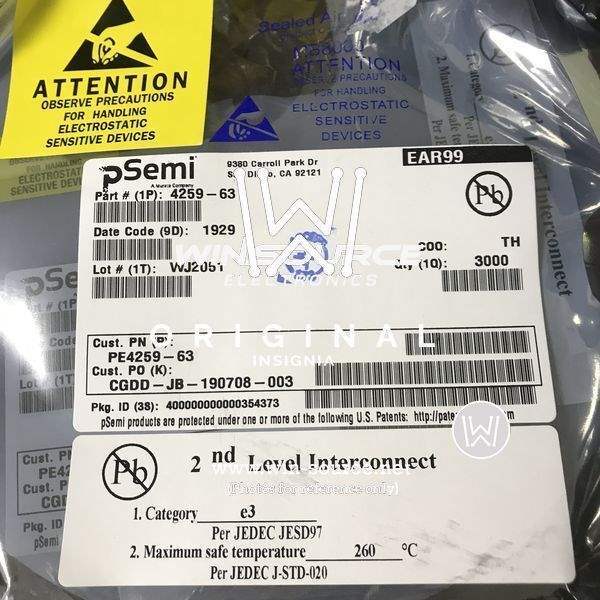

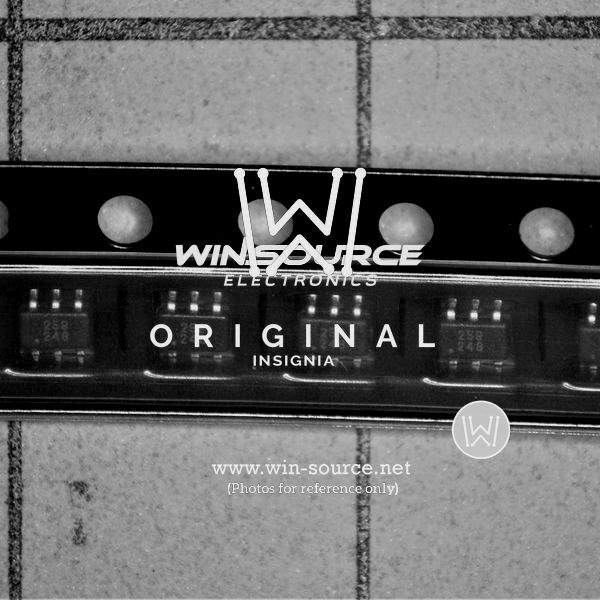

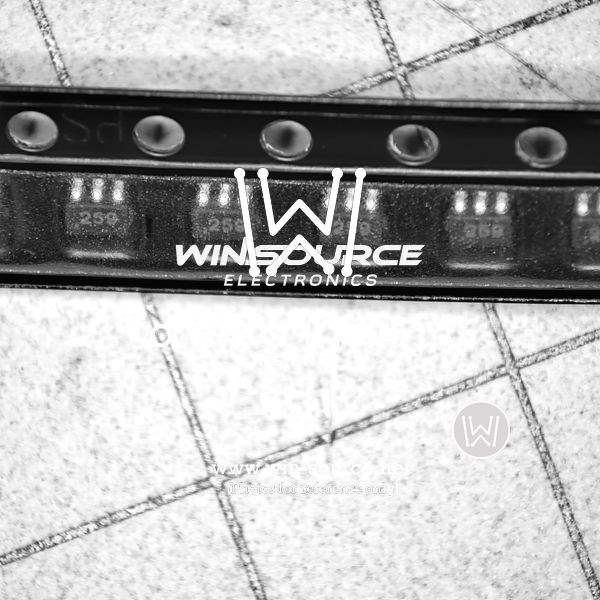

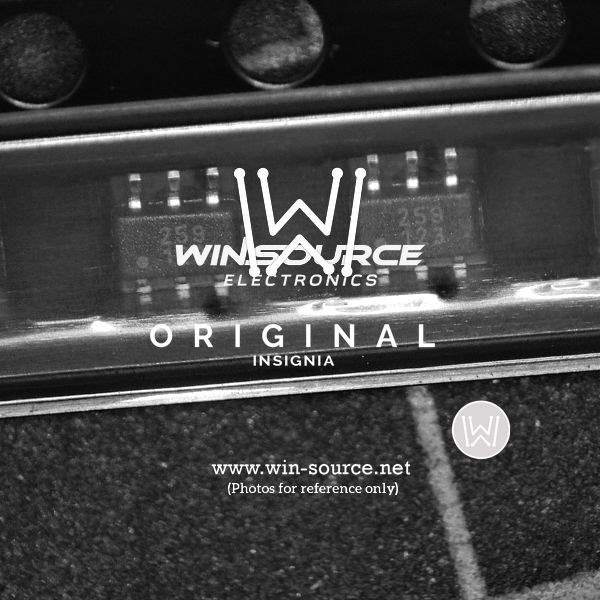

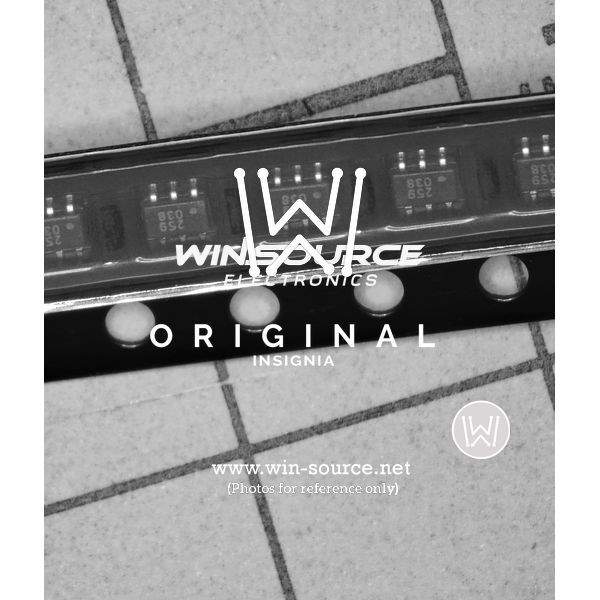

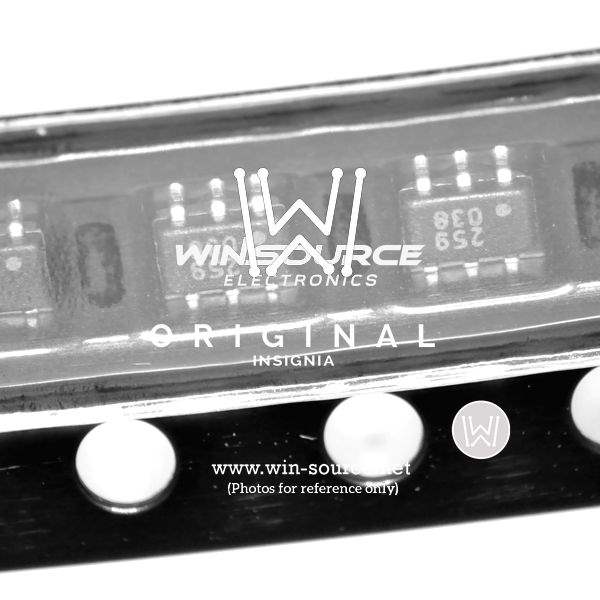

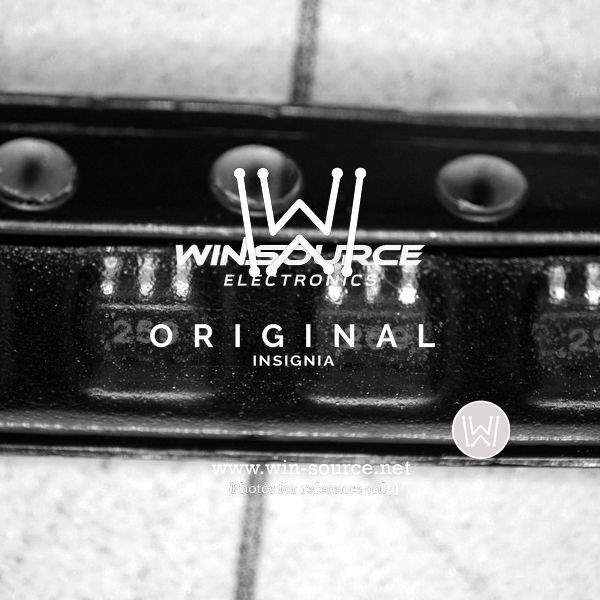

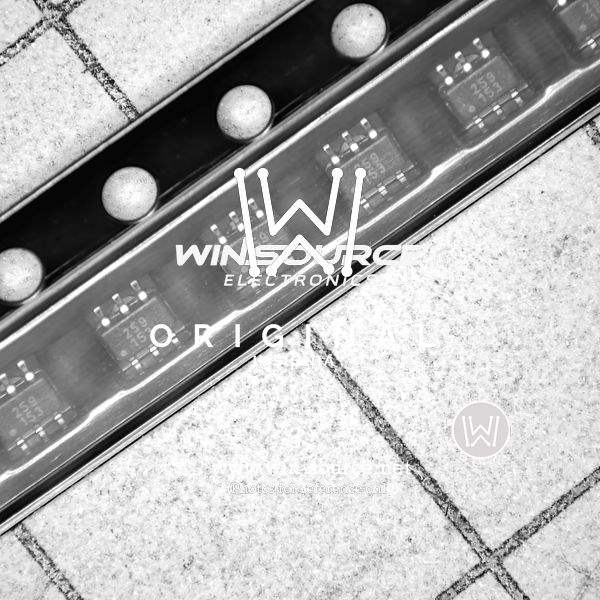

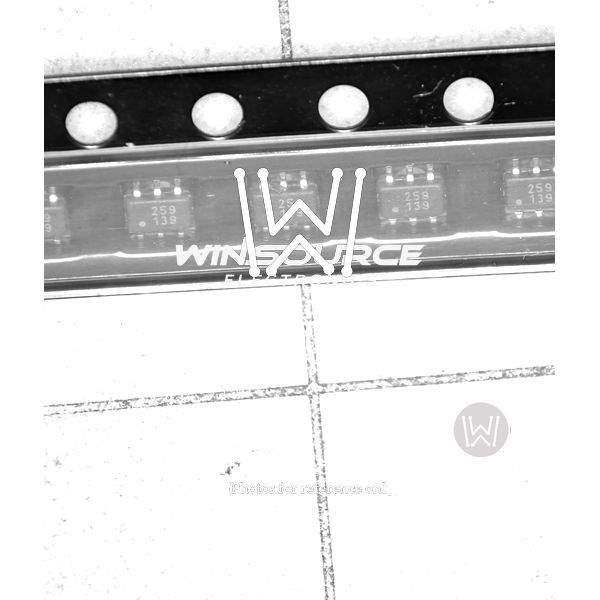

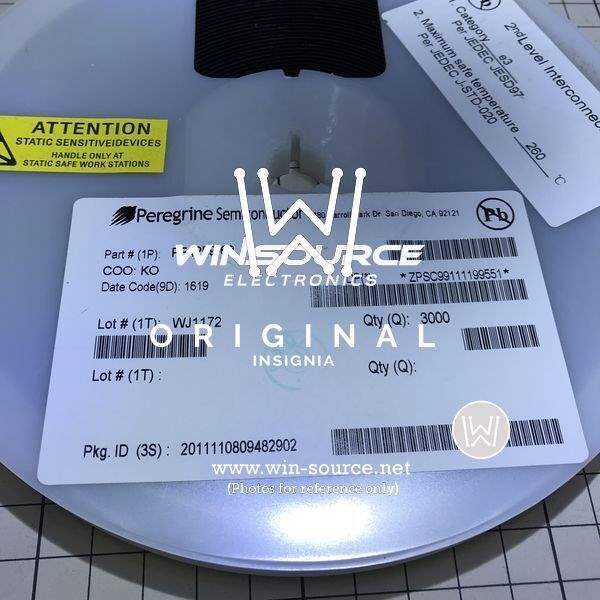

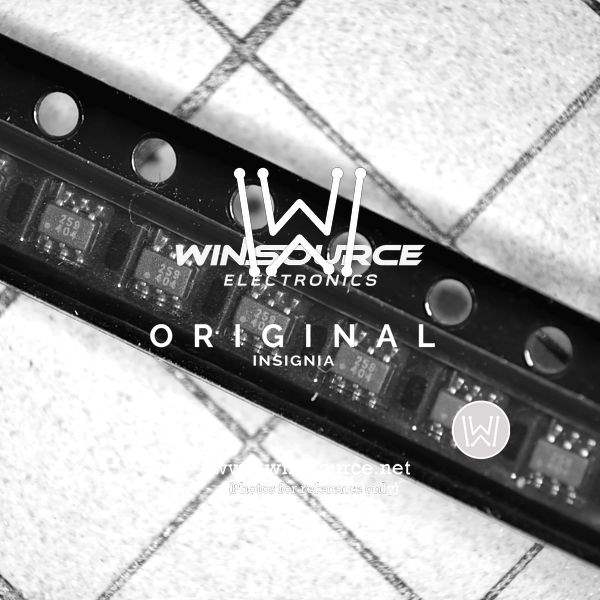

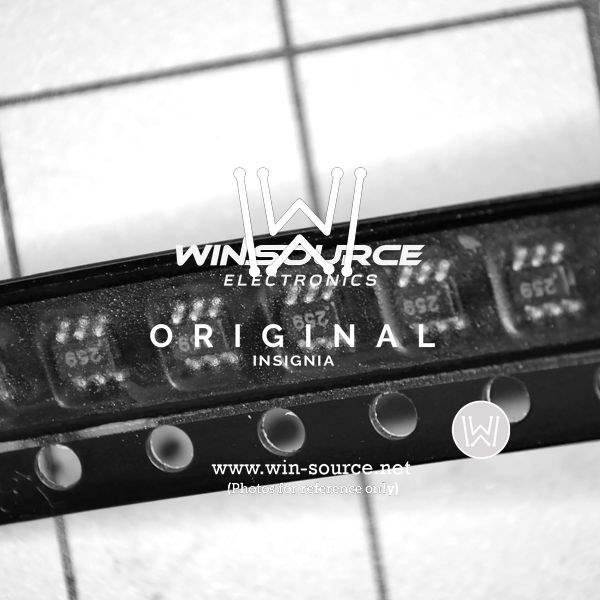

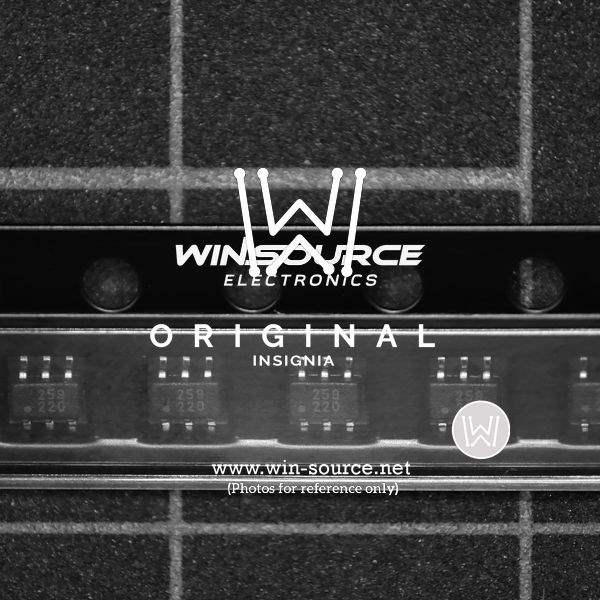

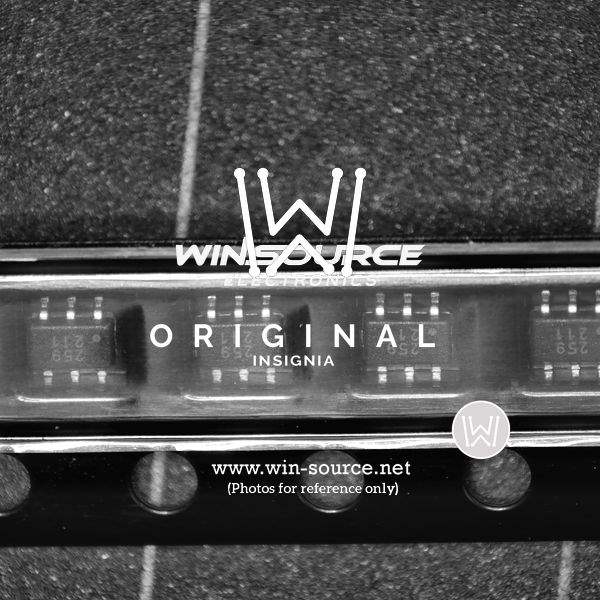

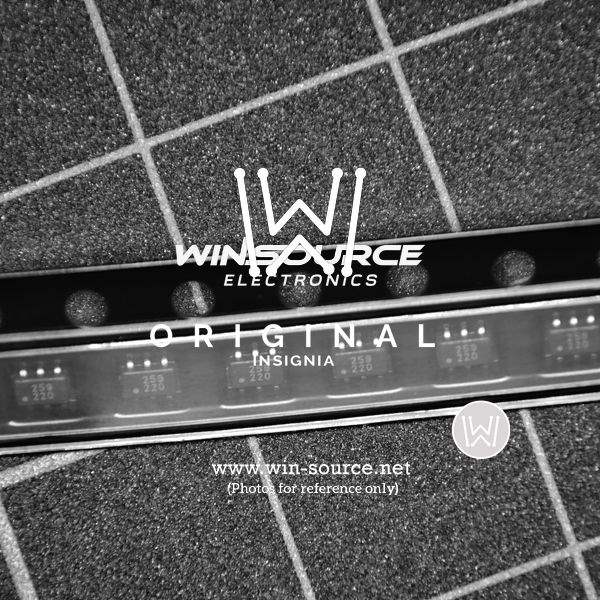

Same model may have multiple batches, images only for reference.

PE4259-63

Name: PE4259-63
Brand: Peregrine Semiconductor
SKU: 271898
Availability: InStock
Rating: 4.94 (407 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PE4259-63
Manufacturer	Peregrine Semiconductor
Catalog	RF Switches
Description	IC RF SWITCH SPDT 50 OHM SC70-6
Datasheet	PE4259-63 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	RF/IF and RFID
Manufacturer	Peregrine Semiconductor
Packaging	Reel - TR
Status	Active
Frequency - Lower	10MHz
Frequency - Upper	3GHz
Isolation @ Frequency	20dB @ 2GHz (typ)
Insertion Loss @ Frequency	0.5dB @ 2GHz
IIP3	55dBm (typ)
Topology	Reflective
Circuit	SPDT
P1dB	29dBm (typ) IP1dB
Features	Single/Dual Line Control
Impedance	50 Ohm
Temperature Range - Operating	-40°C to 85°C
Supply Voltage - Operating	1.8 V to 3.3 V
RF Type	General Purpose

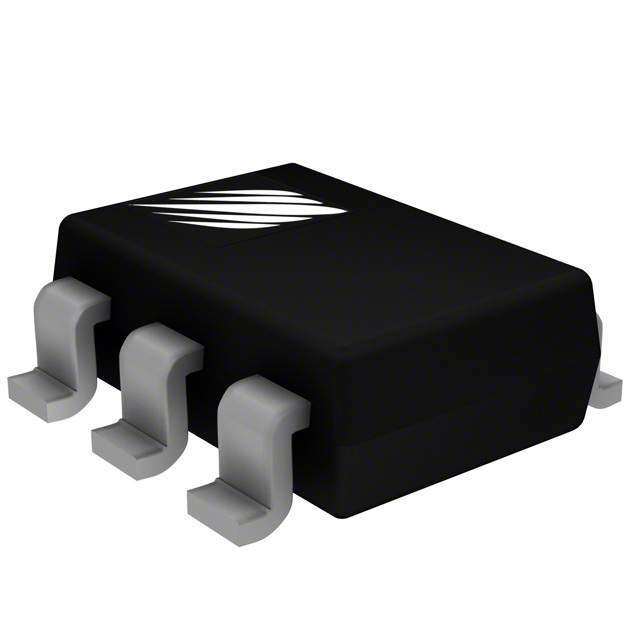

Case / Package	SC-70-6
Win Source Part Number	271898-PE4259-63
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Sufficient
Family Name	PE4259
Introduction Date	October 23, 2003
Estimated EOL Date	2024
Ultra Librarian 3D Model	Ultra Librarian PE4259-63 CAD Model

Description

The Peregrine Semiconductor PE4259-63 is an active electronic component that is manufactured by Peregrine Semiconductor.

Win Source Part Number: 271898-PE4259-63
Manufacturer Homepage: www.psemi.com
Frequency Range: 10MHz to 3GHz
Impedance: 50 Ohm
Circuit: SPDT
Topology: Reflective
Isolation: 20dB @ 2GHz (typ)
Insertion Loss: 0.5dB @ 2GHz
IIP3: 55dBm (typ)
P1dB: 29dBm (typ) IP1dB
RF Type: General-Purpose RF/IF and RFID
