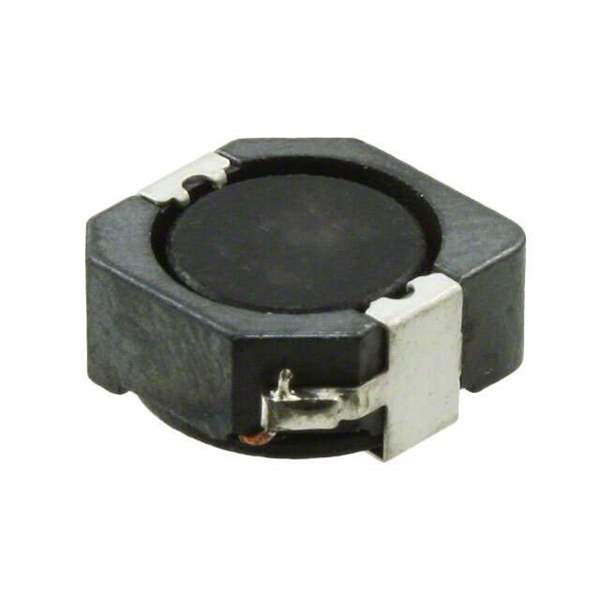

7447714470 Real Image
Same model may have multiple batches, images only for reference.

7447714470

Part No 7447714470
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 47UH 2.2A 99 MOHM SMD
Datasheet
7447714470 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PD Performance
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 2.2 A
Current - Saturation (Isat) 2.5A
Shielding Shielded
DC Resistance (DCR) 99mOhm Max
Frequency - Self Resonant 8.8MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857545-7447714470
Ultra Librarian 3D Model Ultra Librarian 7447714470 CAD Model

Description

The WE-PD Performance series is a range of drum core, wirewound inductors designed for use in electronic circuits.

  • Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
  • Inductance: 47 µH
  • DC Resistance: 99mOhm
  • Current Rating: 2.2 A
  • Shielding: Shielded
  • Mounting Type: Surface Mount
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Self-Resonant Frequency: 8.8MHz
