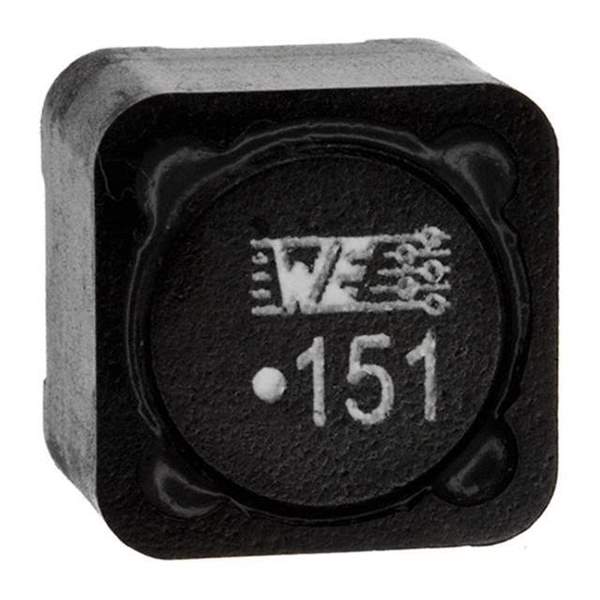

7447709151

Part No 7447709151
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 150UH 2.1A 200MOHM SMD / 150 µH Shielded Drum Core, Wirewound Inductor 2.1 A 200mOhm Max Nonstandard
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 150 µH
Tolerance ±20%
Current Rating (Amps) 2.1 A
Current - Saturation (Isat) 2.7A
Shielding Shielded
DC Resistance (DCR) 200mOhm Max
Frequency - Self Resonant 3.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max) 0.394" (10.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 732-1695-2,732-1695-1,732-1695-6
Standard Package 250
Win Source Part Number 1327660-7447709151
Ultra Librarian 3D Model Ultra Librarian 7447709151 CAD Model

Description

The 7447709151 is a fixed inductor from Würth Elektronik with a 150μH inductance and a tolerance of ±20%.

  • Inductance: 150μH
  • Tolerance: ±20%
  • Case/Package: Nonstandard
  • Mounting: Surface Mount
  • Shielding: Shielded
  • Size: 0.472” L x 0.472” W (12.00mm x 12.00mm)
  • Height: 0.394” (10.00mm)
  • DC Resistance (DCR): 200mOhm max
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Current Rating: 2.1A
  • Current Saturation: 2.7A
  • REACH: Unaffected
  • HTSUS: 8504.50.4000
