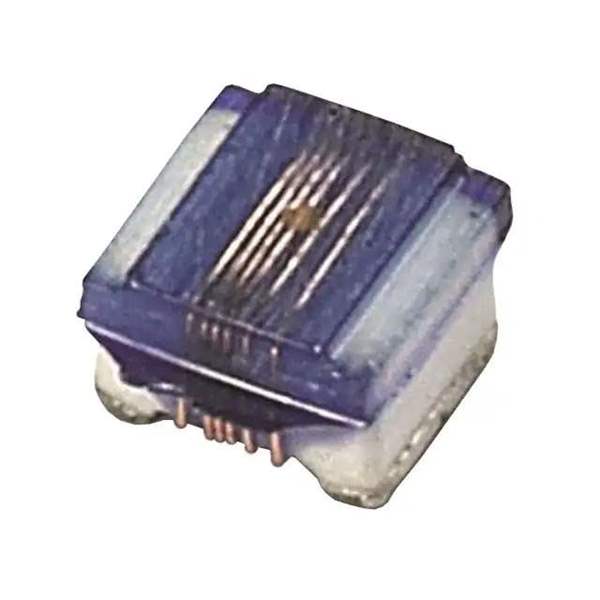

744760222A

Part No 744760222A
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description WE-KI SMT WIRE WOUND CERAMIC IND
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-KI
Package Tape & Reel
Product Status Active
Type Wirewound
Material - Core Ceramic
Inductance 220 nH
Tolerance ±5%
Current Rating (Amps) 400 mA
Shielding Unshielded
DC Resistance (DCR) 1Ohm Max
Q @ Freq 50 @ 250MHz
Frequency - Self Resonant 860MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.055" (1.40mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1149422-744760222A
Ultra Librarian 3D Model Ultra Librarian 744760222A CAD Model

Description

The 1022208 is a wirewound fixed inductor in the WE-KI series. Wurth Electronics Inc manufactures it.

  • Series: WE-KI
  • Win Source Part Number: 1149422-744760222A
  • Package: Tape & Reel
  • Shielding: Unshielded
  • Size/Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Inductance: 220 nH
  • Tolerance: ±5%
  • Mounting Type: Surface Mount
  • Package/Case: 0805 (2012 Metric)
  • DC Resistance (DCR): 1 Ohm max
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited Floor Life)
  • Product Status: Active
  • AEC-Q200: Yes (Automotive Electronics)
