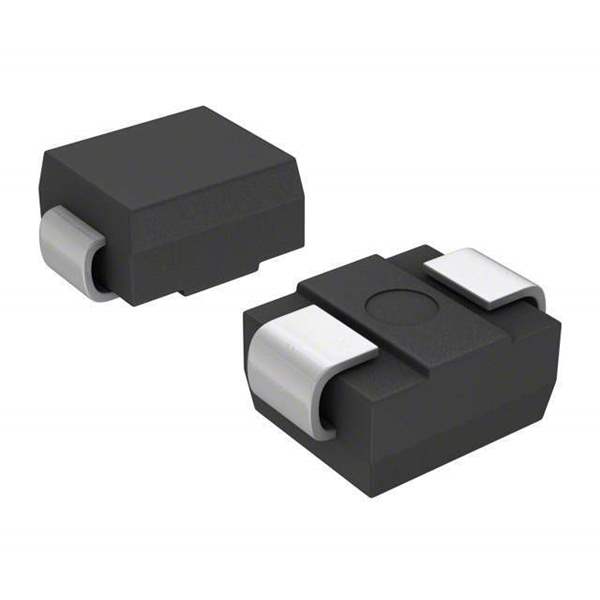

VS-10BQ040-M3/5BT Vishay
Same model may have multiple batches, images only for reference.

VS-10BQ040-M3/5BT

Part No VS-10BQ040-M3/5BT
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Schottky 40V 1A 2-Pin SMB T/R / DIODE SCHOTTKY 40V 1A SMB
Datasheet
VS-10BQ040-M3/5BT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 450mV @ 1A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 40V
Capacitance @ Vr, F 115pF @ 5V, 1MHz
Mounting SMD (SMT)
Case / Package SMB
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1117617-VS-10BQ040-M3/5BT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name VS-10BQ040
Introduction Date June 26, 2012
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-10BQ040-M3/5BT CAD Model

Description

The Vishay VS-10BQ040-M3/5BT is a Schottky diode designed for use in Discrete Semiconductor Products.

  • Package: SMB
  • Mounting: SMD (SMT)
  • Voltage - DC Reverse (Vr) (Max): 40V
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 450mV @ 1A
  • Current - Reverse Leakage @ Vr: 100μA @ 40V
  • Capacitance @ Vr, F: 115pF @ 5V, 1MHz
  • Operating Temperature - Junction: -55°C to 150°C
  • Speed (frequency): Fast recovery = 200mA (Io)
  • Alternative Parts (cross-reference): VS-10BQ040HM3/5BT, B140HB-13, B140HB-F, and B140HB-13-F
  • Introduction Date: June 26, 2012
  • ECCN: EAR99
  • Estimated EOL Date: 2026
  • Supply and Demand Status: Limited
