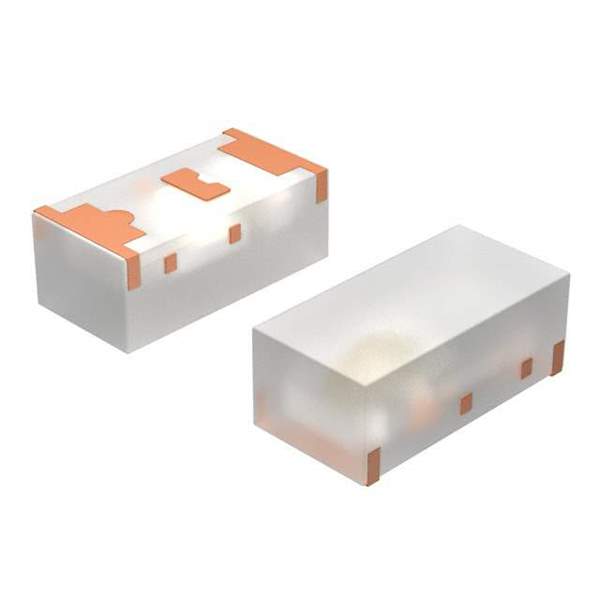

TLMS1100-GS08 Real Image
Same model may have multiple batches, images only for reference.

TLMS1100-GS08

Part No TLMS1100-GS08
Manufacturer Vishay
Catalog LED Indication - Discrete
Description Standard 0603 SMD LED
Datasheet
TLMS1100-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Color Red
Millicandela Rating 63mcd
Lens Style/Size Rectangle with Flat Top, 1.60mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Viewing Angle 160°
Mounting SMD
Wavelength - Dominant 633nm
Wavelength - Peak 645nm
Package 0603
Manufacturer Package 0603
Size 1.60mm L x 0.80mm W
Height (Maximum) 0.65mm
Win Source Part Number 1269674-TLMS1100-GS08
Manufacturer Homepage www.vishay.com
Family Name TLMS1100
Introduction Date February 07, 2011
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2023
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Consumer Electronics, Automotive, Signalling, Defence, Military & Aerospace, Industrial
Ultra Librarian 3D Model Ultra Librarian TLMS1100-GS08 CAD Model

Description

The Vishay Semiconductor Opto Division TLMS1100-GS08 is a surface mount LED with a rectangular flat top lens style of 1.60mm x 0.80mm size.

  • Lens Style: Rectangular flat top
  • Lens Size: 1.60mm x 0.80mm
  • Viewing Angle: 160°
  • Dominant Wavelength: 633nm
  • Peak Wavelength: 645nm
  • Forward Voltage: 2.1V
  • Test Current: 20mA
  • Applications: Consumer electronics, automotive, signalling, defence, military & aerospace, and industrial
  • Estimated EOL Date: 2023
