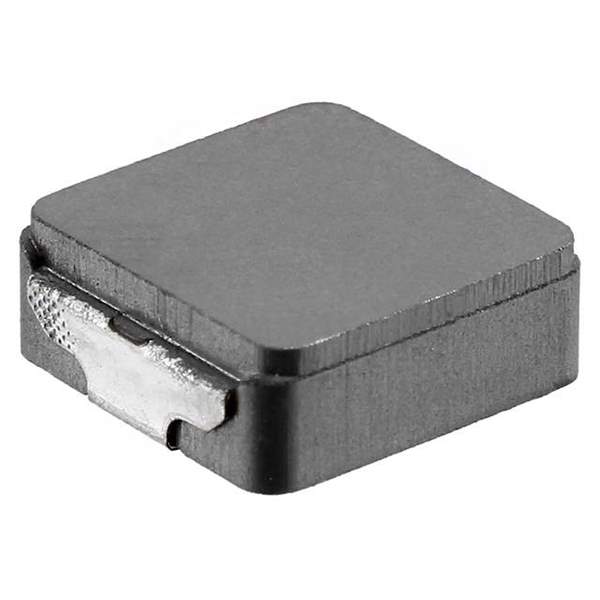

IHLP4040DZER5R6M01 Real Image
Same model may have multiple batches, images only for reference.

IHLP4040DZER5R6M01

Part No IHLP4040DZER5R6M01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 5.6UH 8.5A 19.3 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Molded
Inductance 5.6μH
Tolerance ±20%
Current Rating 8.5A
Current - Saturation 16A
DC Resistance (DCR) 19.3 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 131402-IHLP4040DZER5R6M01
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER5R6M01 CAD Model

Description

Vishay IHLP4040DZER5R6M01 is a molded inductor that has a current rating of 8.5A and an inductance of 5.6μH.

  • Current Rating: 8.5A
  • Inductance: 5.6μH
  • Height: 0.157" (4.00mm) when seated
  • Mounting: SMD (SMT)
  • Tolerance: ±20%
  • Current Saturation: 16A
  • Frequency Self-Resonant: Not specified
  • Supply and Demand Status: Limited
  • Quantity per Package: 500
