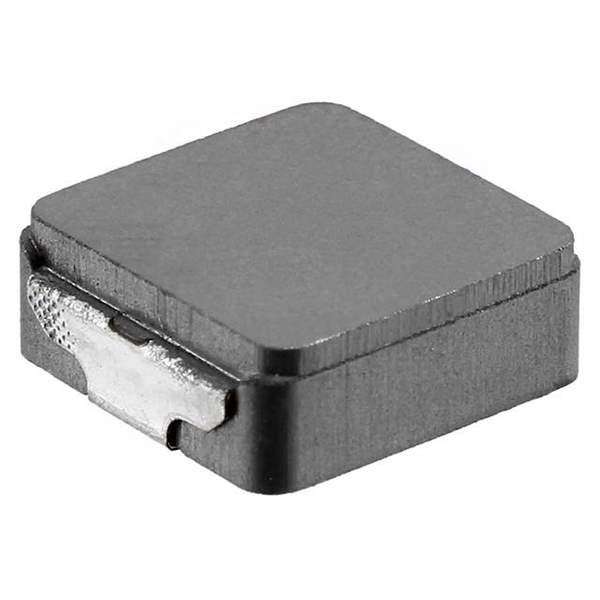

IHLP4040DZER100M01 Real Image
Same model may have multiple batches, images only for reference.

IHLP4040DZER100M01

Part No IHLP4040DZER100M01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 10UH 6.8A 36.5 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Vishay
Packaging Reel - TR
Status Active
Type Molded
Inductance 10μH
Tolerance ±20%
Current Rating 6.8A
Current - Saturation 12A
DC Resistance (DCR) 36.5 mOhm Max
Temperature Range - Operating -55°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 130589-IHLP4040DZER100M01
Popularity Medium
Supply and Demand Status Limited
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian IHLP4040DZER100M01 CAD Model

Description

This inductor is manufactured by Vishay and has a Win Source Part Number of 130589-IHLP4040DZER100M01.

  • Packaging: Reel - TR
  • Type: Molded
  • Current Rating: 6.8A
  • Inductance: 10μH
  • Height-Seated (Max): 0.157" (4.00mm)
  • Mounting: SMD (SMT) technology
  • Tolerance: ±20%
  • Current-Saturation: 12A
  • Frequency-Self Resonant: Not specified
  • Frequency-Test: Not specified
  • Category: Inductors, Coils, Chokes
  • DC Resistance (DCR): 36.5 mOhm Max
  • Status: Active
  • Temperature Range: -55°C to 125°C
  • Supply and Demand Status: Limited
  • Package Quantity: 500
