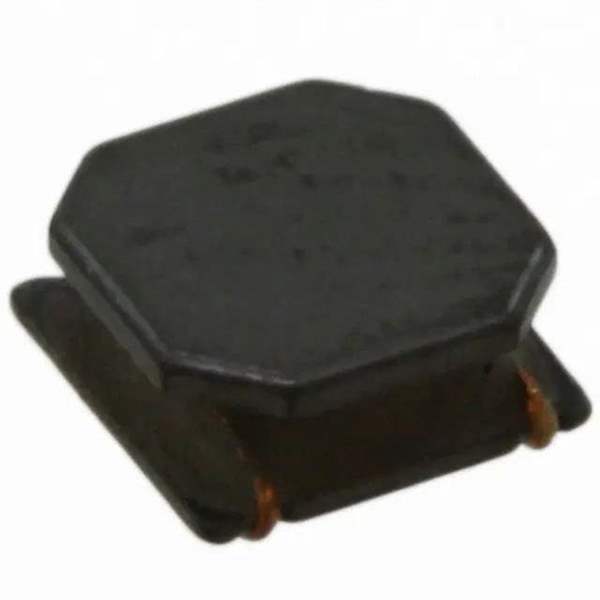

IFSC1515AHER1R0M01

Part No IFSC1515AHER1R0M01
Manufacturer Vishay
Catalog Fixed Inductors
Description FIXED IND 1UH 3.8A 25 MOHM SMD / 1 μH Shielded Inductor 3.8 A 25mOhm Max Nonstandard
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Vishay
Series IFSC-1515AH-01
Package Tape & Reel
Product Status Active
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.8 A
Current - Saturation (Isat) 3.8A
Shielding Shielded
DC Resistance (DCR) 25mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.075" (1.90mm)
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 874415-IFSC1515AHER1R0M01
Ultra Librarian 3D Model Ultra Librarian IFSC1515AHER1R0M01 CAD Model

Description

The 874415-IFSC1515AHER1R0M01 is a fixed inductor from Vishay's IFSC-1515AH-01 series.

  • Series: IFSC-1515AH-01
  • Shielding: Shielded
  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Height: 0.075" (1.90mm)
  • Inductance: 1 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 25mOhm (maximum)
  • Mounting: Surface Mount
  • Temperature Range: -55°C to 125°C
  • Status: Active
