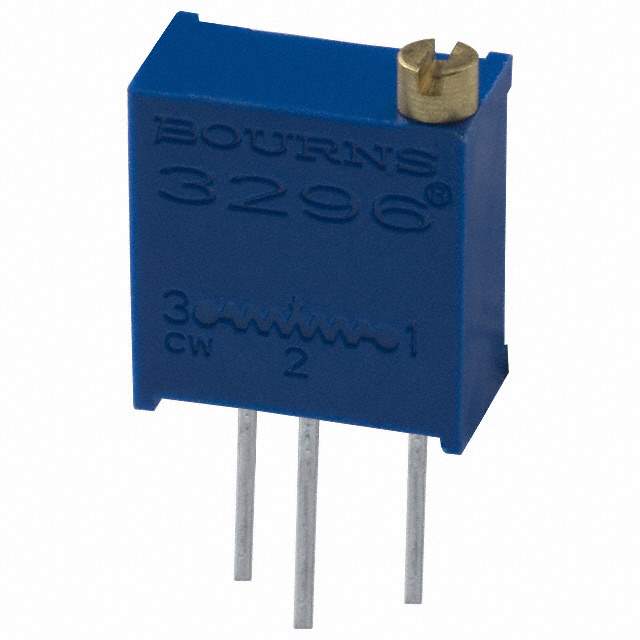

3296Y-1-203LF Real Image 3296Y-1-203LF real image 3296Y-1-203LF real image21463
3296Y-1-203LF Real Image 3296Y-1-203LF real image 3296Y-1-203LF real image21463
Same model may have multiple batches, images only for reference.

3296Y-1-203LF

Part No 3296Y-1-203LF
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 20K OHM 0.5W PC PIN
Datasheet
3296Y-1-203LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Series Trimpot 3296 - Sealed
Packaging Tube
Resistance (Ohms) 20k
Power (Watts) 0.5W, 1/2W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 25
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style Through Hole
Termination Style PC Pins
Dimension Rectangular - 0.375" x 0.190" Face x 0.395" H (9.53mm x 4.83mm x 10.03mm)
Win Source Part Number 763237-3296Y-1-203LF
Popularity Medium
Supply and Demand Status Limited
Family Name 3296
Introduction Date September 25, 1997
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian 3296Y-1-203LF CAD Model

Description

The Bourns Inc. 3296Y-1-203LF is an electronic component.

  • Series: Trimpot 3296 - sealed
  • Packaging: Tube
  • Termination Style: PC pins
  • Mounting Style: Through-hole
  • Tolerance: ±10 percent
  • Temperature Coefficient: ±100ppm/°C
  • Power: 0.5W, 1/2W
  • Resistance: 20k
  • Number of Turns: 25
  • Adjustment Type: Top adjustment
  • Resistive Material: Cermet
  • Dimension: Rectangular (0.375" x 0.190" face x 0.395" H (9.53mm x 4.83mm x 10.03mm))
  • Alternative Parts: 67YR20KLF, 67WR20KLF, CT-94EW203
  • ECCN: EAR99
  • Country of Origin: Costa Rica
  • Estimated EOL Date: 2027
  • Compliance: Halogen-free
  • Supply and Demand Status: Limited
