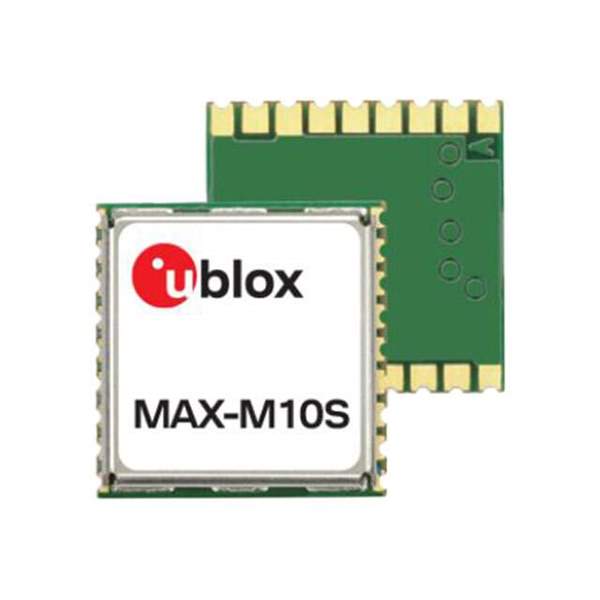

MAX-M10S-00B Real Image
Same model may have multiple batches, images only for reference.

MAX-M10S-00B

Part No MAX-M10S-00B
Manufacturer U-blox
Catalog RF Receivers
Description GNSS LCC RX, ROM, TCXO, LNA, SAW / MAX-M10 RF Receiver BeiDou, Galileo, GLONASS, GPS, GNSS 1.561GHz, 1.575GHz, 1.602GHz -167dBm 921.6kbps Not Included Module
Datasheet
MAX-M10S-00B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Receivers
Mfr U-Blox
Series MAX-M10
Package Tape & Reel
Frequency 1.561GHz, 1.575GHz, 1.602GHz
Sensitivity -167dBm
Data Rate (Max) 921.6kbps
Modulation or Protocol BeiDou, Galileo, GLONASS, GPS, GNSS
Applications GPS/GNSS Receiver
Data Interface I2C, UART
Antenna Connector Not Included
Voltage - Supply 2.7V ~ 3.6V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 18-SMD Module
Supplier Device Package Module
Standard Package 500
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 7A994
HTSUS 8526.91.0020
Win Source Part Number 1348568-MAX-M10S-00B
Ultra Librarian 3D Model Ultra Librarian MAX-M10S-00B CAD Model

Description

The U-Blox RF receiver is used for GPS/GNSS Receiver applications.

  • Manufacturer: U-Blox
  • Series: MAX-M10
  • Packaging: Tape and Reel
  • Standard Package: 500
  • Frequency: 1.561GHz, 1.575GHz, 1.602GHz
  • Memory Size: Not Specified
  • Current Receiving: Not Specified
  • Antenna Connector: Not Specified
  • Data Interface: I2C, UART
  • Sensitivity: -167dBm
  • Data Rate (Max): 921.6kbps
  • Modulation or Protocol: BeiDou, Galileo, GLONASS, GPS, GNSS
  • Voltage Supply: 2.7V ~ 3.6V
  • Mounting Type: Surface Mount
  • Package/Case: 18-SMD Module
  • Supplier Device Package: Module
  • Temperature Range for Operating: -40℃ ~ 85℃
  • ECCN: 7A994
  • REACH Status: REACH Unaffected
  • HTSUS: 8526.91.0020
