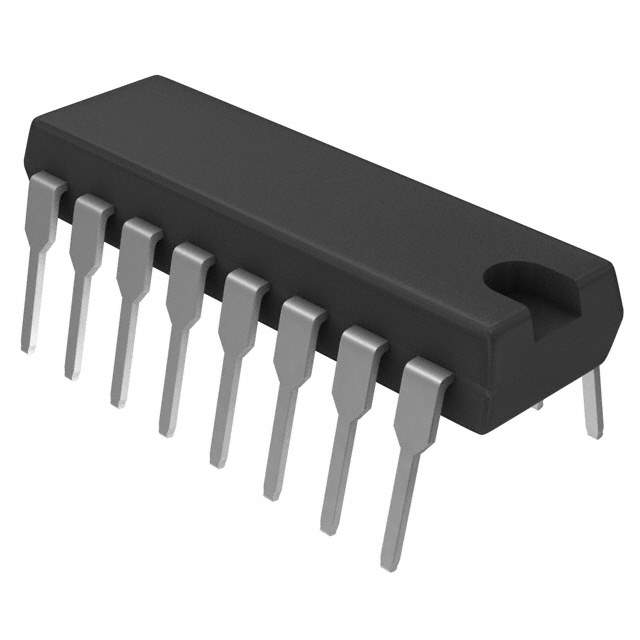

TLP627-4(F) Toshiba Semiconductor and Storage TLP627-4(F) Real Image TLP627-4(F) label picture TLP627-4(F) real image7481
TLP627-4(F) Toshiba Semiconductor and Storage TLP627-4(F) Real Image TLP627-4(F) label picture TLP627-4(F) real image7481
Same model may have multiple batches, images only for reference.

TLP627-4(F)

Part No TLP627-4(F)
Manufacturer Toshiba Semiconductor and Storage
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV 4CH DARLINGTON 16DIP / Optocoupler DC-IN 4-CH Darlington DC-OUT 16-Pin PDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Toshiba Semiconductor and Storage
Packaging Tube/Rail
Status Active
Number of Channels 4
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 1000% @ 1mA
Switching Turn-On and Turn-Off Time 50μs, 15μs
Rise and Fall Time 40μs, 15μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 300V
Channel Output Current 150mA
Forward Voltage 1.15V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1.2V
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 16-DIP
Win Source Part Number 056717-TLP627-4(F)
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name TLP627-4
Introduction Date February 26, 1998
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian TLP627-4(F) CAD Model

Description

The Toshiba Semiconductor and Storage electronic component is an isolator that has a through-hole mounting.

  • Output Type: It has an output type of Darlington.
  • Forward Voltage: a forward voltage of 1.15V.
  • Channels: The number of channels is 4.
  • Isolation Voltage: the isolation voltage is 5000Vrms.
  • Status: The supply and demand status is sufficient and it is an active component.
  • Application: This component is ideal for various electronic applications.
