Product Overview: TS5A3160DCKR - Texas Instruments

The TS5A3160DCKR from Texas Instruments is a high-performance, single-pole double-throw (SPDT) analog switch designed for 1.65-V to 5.5-V VCC operation. This versatile switch is a valuable component for a variety of applications, including signal routing in audio, video, and other analog or digital signal processing.

Key Features

• Low Power Consumption: The device features a very low on-state resistance (RON) which minimizes power loss and ensures efficient operation.
• Bidirectional Signal Flow: The TS5A3160DCKR supports bidirectional signal flow, making it flexible for use in various circuit configurations.
• High-Speed Switching: Fast switching speeds enable the device to handle high-frequency signals with minimal distortion.
• Wide Operating Voltage Range: With a broad VCC operating range, this switch can easily integrate into systems with different power levels.
• Low Charge Injection: The switch exhibits low charge injection, which helps to reduce signal corruption during the switching process.
• ESD Protection: Enhanced Electrostatic Discharge (ESD) protection shields the device from potential damage due to static discharges.

Applications

The TS5A3160DCKR is well-suited for various applications that require reliable and efficient signal switching. It is commonly used in:

• Audio and Video Signal Routing
• Data Acquisition Systems
• Communication Systems
• Portable Test Instruments
• Sample and Hold Circuits

Package and Quality

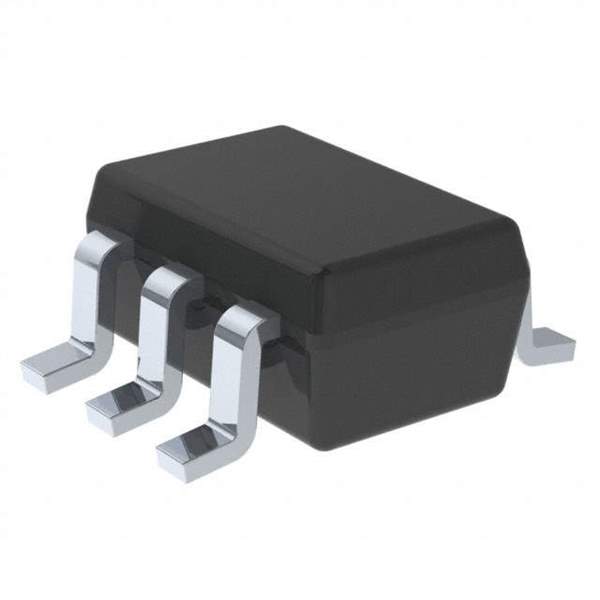

The device is offered in a compact SC70 package, which is ideal for space-constrained applications. Texas Instruments ensures high-quality standards, and the TS5A3160DCKR is no exception, providing reliable performance for critical electronic systems.
