Product Overview: Texas Instruments TPS7A4700RGWR

The TPS7A4700RGWR from Texas Instruments is a high-precision, low-dropout voltage regulator that offers the benefits of both low noise performance and high power supply rejection ratio (PSRR), making it an ideal choice for sensitive analog circuitry in mixed-signal systems. This regulator is designed to deliver a stable and clean power supply, which is crucial for high-performance applications such as precision instrumentation, high-end audio, and professional-grade communication equipment.

Key Features

• Adjustable Output Voltage: The device provides an adjustable output voltage range from 1.4V to 20.5V, which can be set using an external resistor divider. This flexibility allows designers to tailor the output to meet specific application requirements.
• Low Dropout Voltage: The TPS7A4700RGWR boasts a low dropout voltage, ensuring efficient operation even when the input-to-output voltage differential is minimal, thus preserving battery life in portable applications.
• High PSRR: With a high PSRR of 72 dB at 1 kHz, the device significantly reduces power supply noise, which is critical for maintaining signal integrity in sensitive analog circuits.
• Low Noise: The regulator offers an ultra-low output noise of 4.17 µVrms (10 Hz to 100 kHz), making it suitable for noise-sensitive applications such as audio and RF systems.
• Thermal and Overcurrent Protection: The TPS7A4700RGWR is equipped with built-in thermal shutdown and overcurrent protection features, enhancing system reliability and safety.

Package and Availability

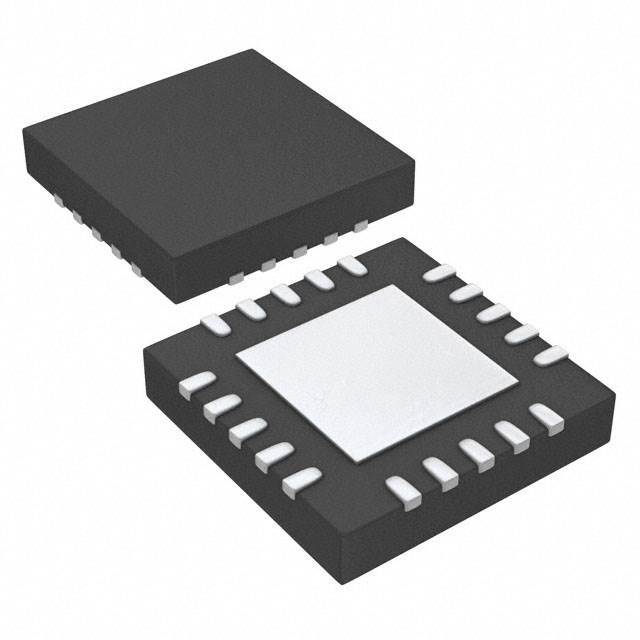

The TPS7A4700RGWR is available in a compact VQFN-20 package, which is designed to occupy minimal board space while providing excellent thermal performance. The device's footprint is compatible with standard surface-mount technology, facilitating easy integration into existing designs.

Applications

Due to its high precision and low noise characteristics, the TPS7A4700RGWR is well-suited for a variety of demanding applications, including:

• Precision Analog and Mixed-Signal Processing
• High-End Audio Equipment
• Professional Communication Systems
• Medical Equipment
• Test and Measurement Instruments

Overall, the Texas Instruments TPS7A4700RGWR low-dropout voltage regulator is a robust solution for applications requiring a stable and clean power supply with high accuracy and low noise levels.
