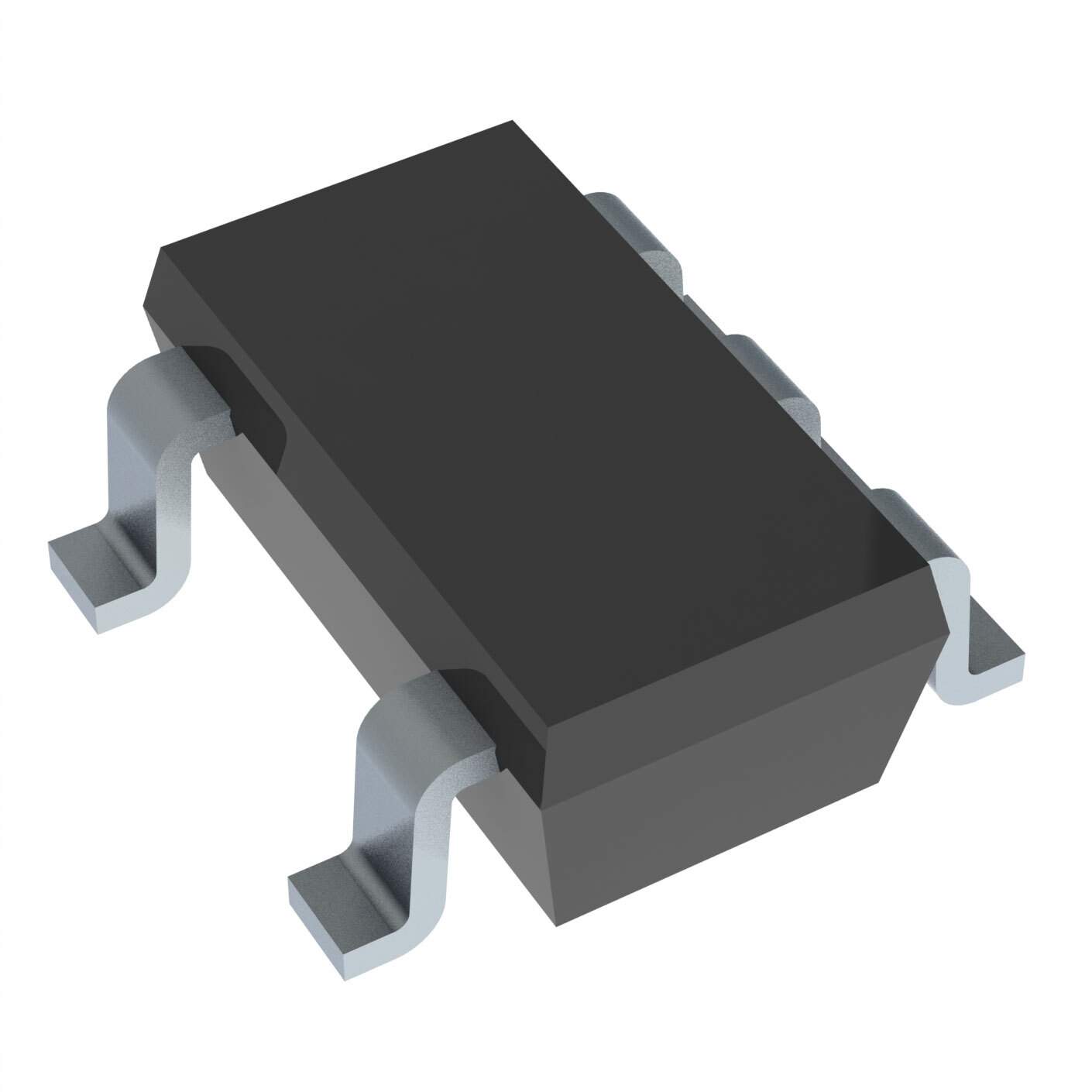

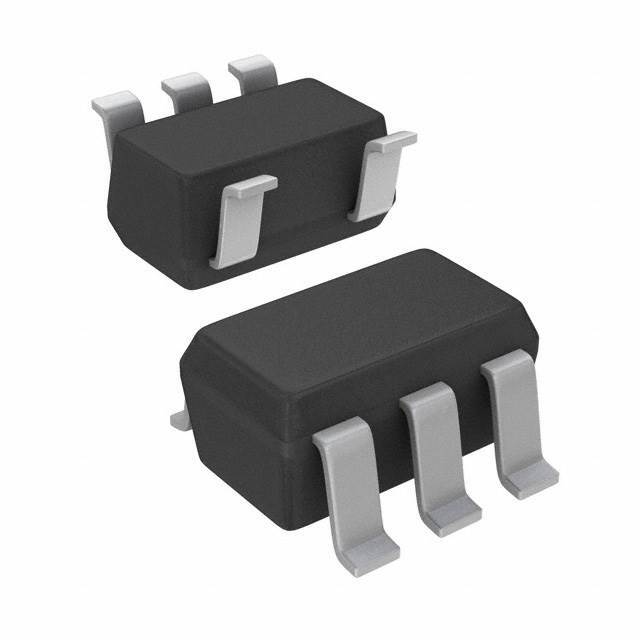

The TPS2051BDBVR is a state-of-the-art, single-channel, current-limited, power-distribution switch designed by Texas Instruments for universal serial bus (USB) and other applications. It comes in a compact SOT-23-5 package, making it an ideal choice for space-constrained applications.

Key Features

• Current Limiting: The device provides a precise current limit to prevent damage due to overcurrent conditions, which is essential for protecting sensitive electronic components.
• Thermal Shutdown: With an integrated thermal shutdown feature, the TPS2051BDBVR protects itself and the downstream devices from thermal overload.
• Fast Transient Response: The switch is designed to respond quickly to transient loads, ensuring stable operation of the connected device during sudden changes in demand.
• Reverse Voltage Protection: This switch safeguards against potential damage from reverse voltage, enhancing the durability of the overall system.
• Under-Voltage Lockout (UVLO): The UVLO feature ensures that the switch remains off when the input voltage is below a certain threshold, preventing erratic behavior of the powered device.

Applications

The versatility of the TPS2051BDBVR makes it suitable for a wide range of applications, including:

• USB hubs and peripheral power management
• Hot-swap power supplies
• Overcurrent and short circuit protection circuits
• Battery-charger circuits
• Portable consumer electronics

Technical Specifications

The device operates over a supply voltage range of 2.7V to 5.5V, which is compatible with typical USB power specifications. It can handle continuous output currents up to 1A, making it suitable for various peripheral devices. The switch's on-resistance (typical R_ON) is low, minimizing voltage drop and power loss.

For engineers and designers looking for a reliable power management solution, the TPS2051BDBVR from Texas Instruments offers a blend of protection features, compact design, and efficient operation, making it a go-to component for USB and other power-sensitive applications.
