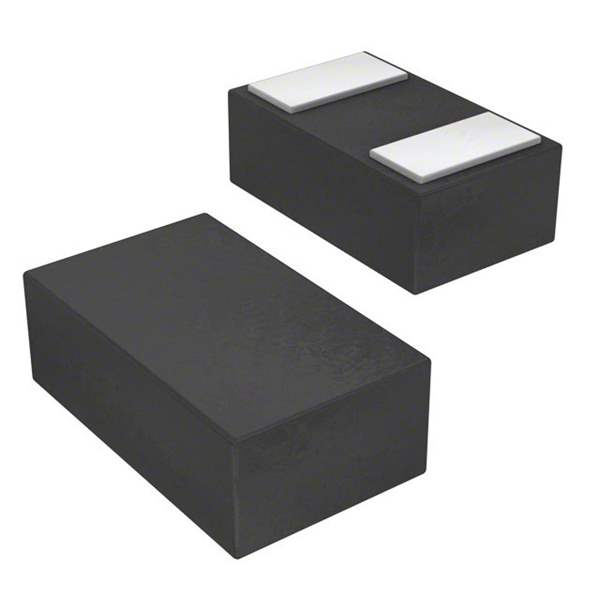

The TPD1E05U06QDPYRQ1 is a state-of-the-art ESD protection device engineered by Texas Instruments to safeguard high-speed interfaces against Electrostatic Discharge (ESD) and other voltage-induced transient events. This compact and efficient component is a crucial addition to any circuit where data integrity and component longevity are of high importance.

Key Features:

• Ultra-Low Clamping Voltage: The device offers exceptional protection by clamping ESD strikes at very low voltages, thus ensuring the safety of sensitive downstream circuits.
• IEC Compatibility: It complies with IEC 61000-4-2 (ESD) standards, which test and ensure the robustness of the component against electrostatic events.
• Low Capacitance: With a low loading capacitance, the TPD1E05U06QDPYRQ1 is ideal for protecting high-speed data lines without compromising signal integrity.
• Small Form Factor: It comes in an ultra-small X1SON package, making it suitable for space-constrained applications without sacrificing performance.
• Wide Operating Range: The device operates over a broad temperature range, which ensures reliable performance across various environmental conditions.

Applications:

The TPD1E05U06QDPYRQ1 is designed to protect a wide range of high-speed interfaces, including but not limited to:

• USB 2.0 and 3.0
• HDMI
• DisplayPort
• Thunderbolt
• SATA and other serial interfaces

This device is particularly suitable for consumer electronics, computing devices, mobile phones, and any other applications where high-speed data transmission and ESD protection are required.

Quality and Reliability:

Texas Instruments is renowned for its commitment to quality and reliability. The TPD1E05U06QDPYRQ1 is no exception, offering designers peace of mind with its robust construction and proven performance in protecting sensitive electronic components from the potentially damaging effects of ESD events.
