The SN74LVC1G17DBVRE4 is a single Schmitt-trigger buffer designed for 1.65-V to 5.5-V VCC operation from Texas Instruments. This high-performance, low-power device features a Schmitt-trigger input that makes it ideal for transforming slowly changing input signals into sharply defined, jitter-free output signals, enhancing the noise immunity and transforming the signal wave-shape. Therefore, it is perfectly suited for applications in noisy environments and is commonly used in signal conditioning, signal decoding, or for transforming an analog signal into a digital one.

Key Features:

• Operating Voltage Range: The device supports a wide range of supply voltages from 1.65V to 5.5V, making it compatible with various logic levels and suitable for interfacing with both 3.3V and 5V systems.
• High Drive: It can drive up to 8 LSTTL loads, which means it has the capability to drive multiple inputs from a single output, providing versatility in its applications.
• Low Power Consumption: The SN74LVC1G17DBVRE4 is designed for low operational power consumption, which is critical for battery-powered and power-sensitive applications.
• Schmitt-Trigger Input: The Schmitt-trigger action at the input allows for slow input transition and better noise margin, which results in a cleaner, more stable output.
• Input Protection: The device features input protection during device power-up and power-down, ensuring reliable operation through voltage transitions.
• ESD Protection: It includes on-chip ESD protection, which provides resilience against electrostatic discharges during handling and operation.

Applications:

The SN74LVC1G17DBVRE4 is versatile and can be used in a wide array of applications. It is ideal for line receivers, wave-shaping circuits, or for interfacing with various sensors and actuators. Its robust design makes it suitable for industrial controls, consumer electronics, telecommunications, and portable electronics.

Package and Quality:

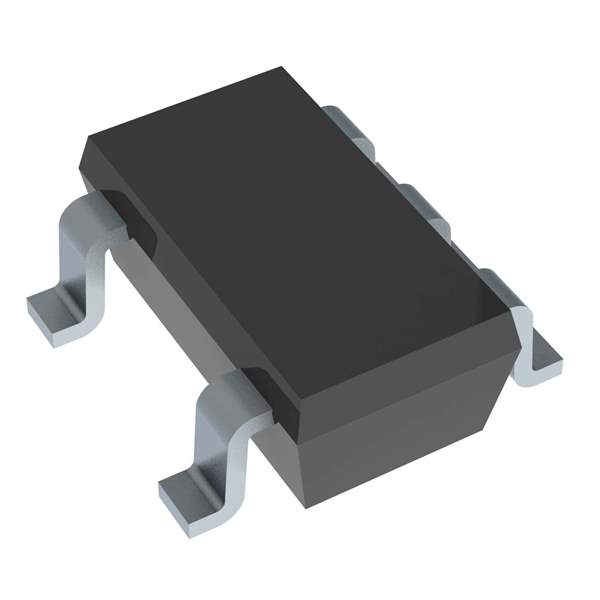

The device comes in a compact SOT-23-5 package, which is ideal for space-constrained applications. Texas Instruments ensures high-quality and reliability, making the SN74LVC1G17DBVRE4 a trusted choice for engineers and designers seeking performance and durability.
