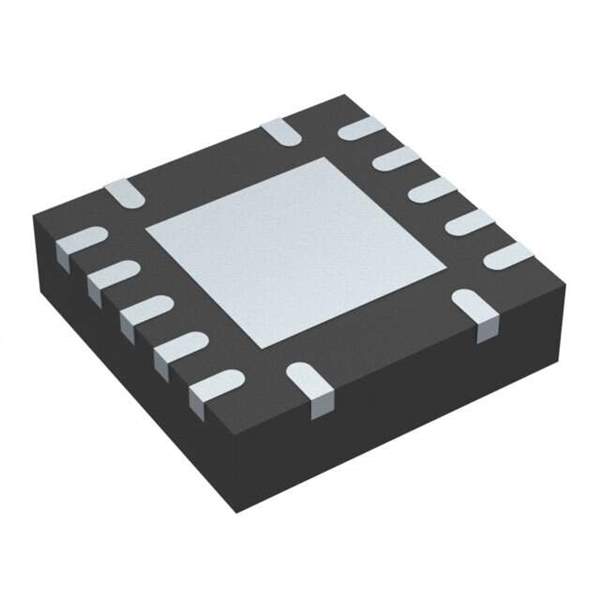

SN74AHC125RGYR Real Image
Same model may have multiple batches, images only for reference.

SN74AHC125RGYR

Part No SN74AHC125RGYR
Manufacturer Texas Instruments
Catalog Logic - Buffers, Drivers, Receivers, Transceivers
Description IC BUS BUFFER TRI-ST QD 14VQFN
Datasheet
SN74AHC125RGYR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Logic Type Buffer, Non-Inverting
Number of Elements 4
Number of Bits per Element 1
Output Type Push-Pull
Current - Output High, Low 8mA, 8mA
Supply Voltage - Operating 2 V to 5.5 V
Temperature Range - Operating -40°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 14-VQFN (3.5x3.5)
Win Source Part Number 029721-SN74AHC125RGYR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SN74AHC125RGYR CAD Model

Description

The SN74AHC125RGYR by Texas Instruments is a high-performance, advanced quad bus buffer gate with 3-state outputs.

  • Device: Quad Bus Buffer Gate
  • Output: 3-state output
  • Voltage Range: 2V to 5.5V
  • Input Voltage: Up to 5.5V
  • Propagation Delay Time: 3.9 ns
  • High-Level Output Current: -8mA
  • Low-Level Output Current: 8mA
  • Package: 14-pin QFN package
  • Operating Temperature: -40°C to 85°C
  • Power Consumption: 20µA
