PCM1804DB Real Image PCM1804DB real image4589

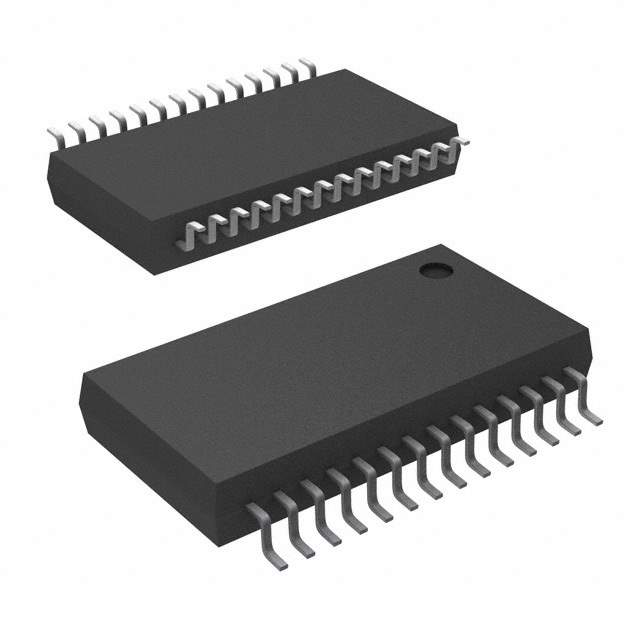

PCM1804DB Real Image PCM1804DB real image4589
Same model may have multiple batches, images only for reference.

PCM1804DB

Part No PCM1804DB
Manufacturer Texas Instruments
Catalog Data Acquisition - ADCs/DACs - Special Purpose
Description IC ADC DLTASGMA AUD 24BIT 28SSOP
Datasheet
PCM1804DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Tube/Rail
Status Active
Type ADC, Audio
Resolution (Bits) 24 b
Sampling Rate 192k
Data Interface Serial
Voltage Supply Source Analog and Digital
Supply Voltage - Operating 3 V to 3.6 V, 4.75 V to 5.25 V
Temperature Range - Operating -10°C to 70°C
Mounting SMD (SMT)
Case / Package 28-SSOP
Win Source Part Number 026566-PCM1804DB
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PCM1804DB CAD Model

Description

The PCM1804DB from Texas Instruments is a high-performance, single-chip, stereo analog-to-digital converter (ADC) that is designed to provide exceptional audio quality in a wide range of applications.

  • Resolution: 24-bit
  • Dynamic Range: 112 dB
  • Total Harmonic Distortion plus Noise (THD+N): -102 dB
  • Analog Input: Differential
  • Power Supply Range: 2.7V to 5.5V
  • Digital Output: I2S and left-justified formats
  • Package: 28-pin SSOP (Shrink Small-Outline Package)
