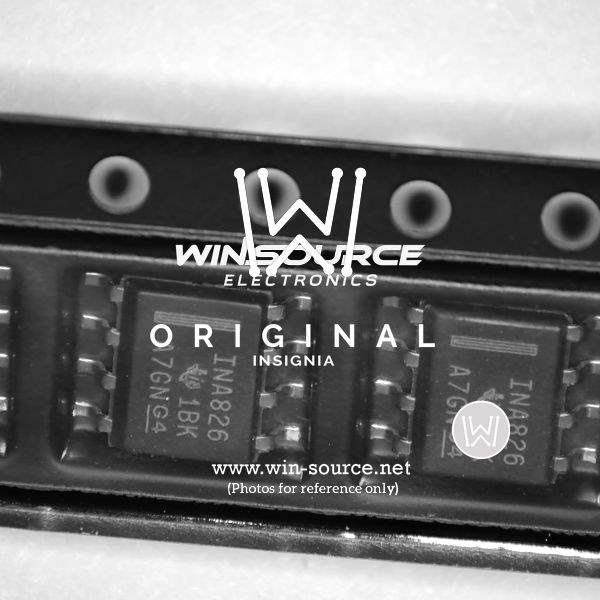

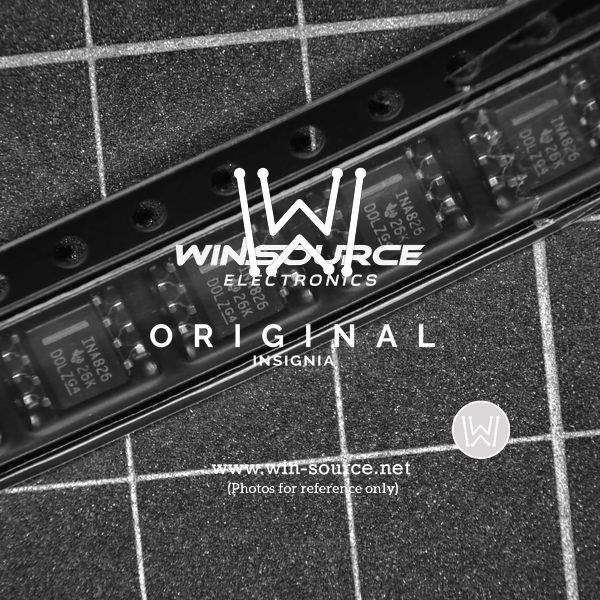

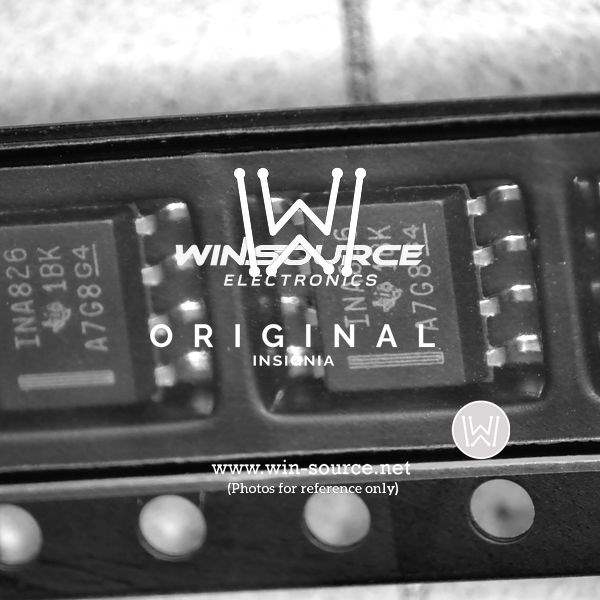

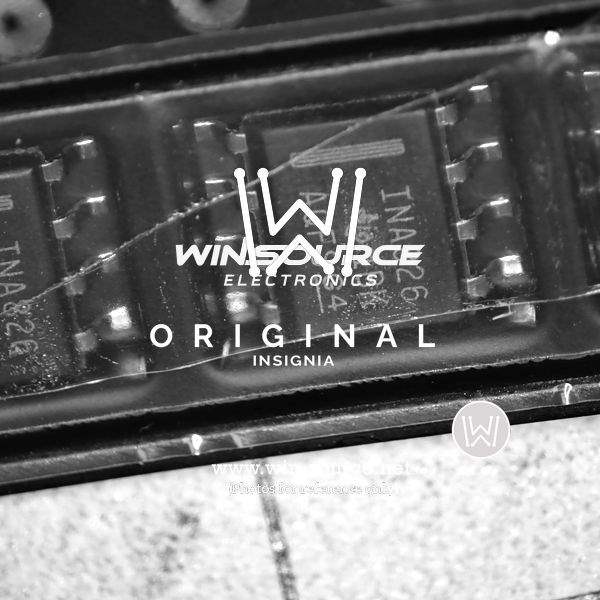

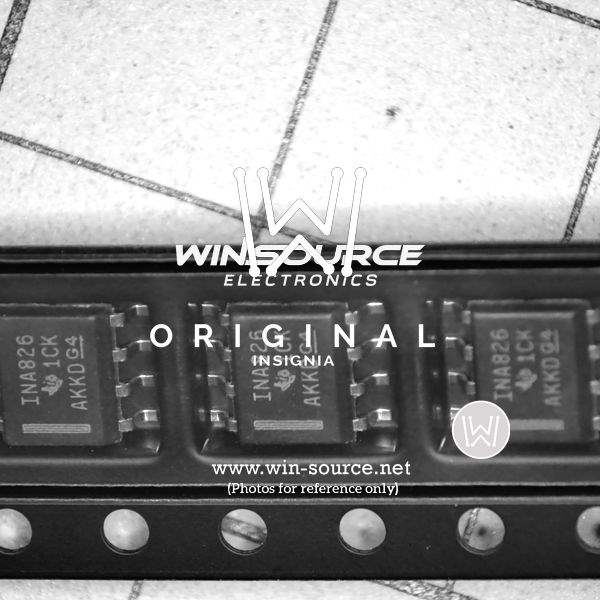

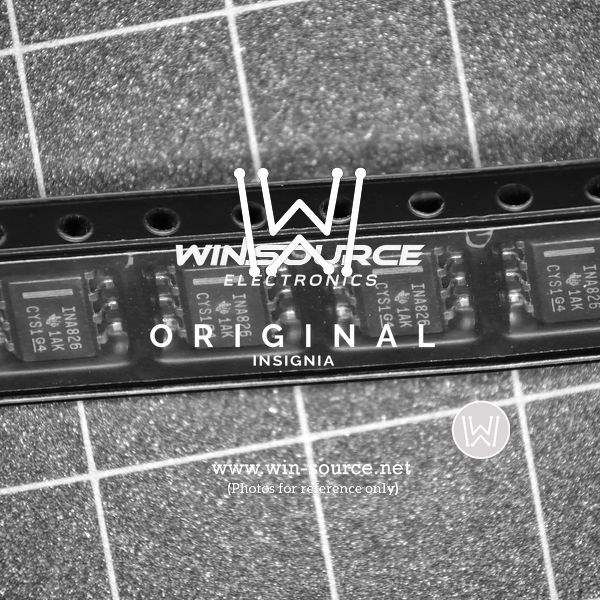

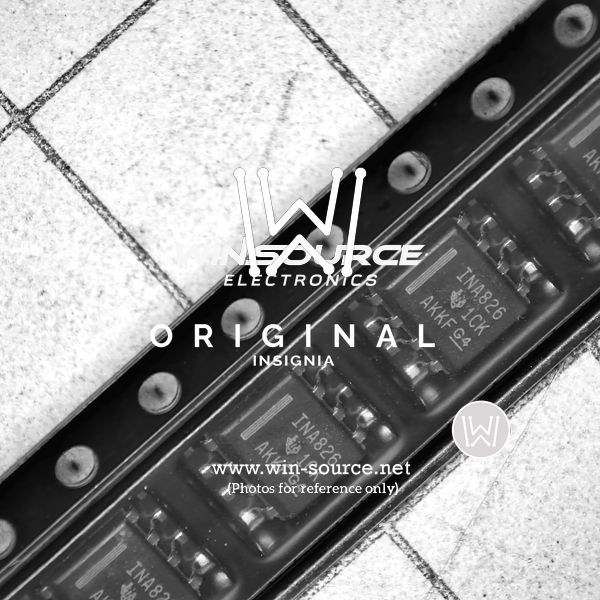

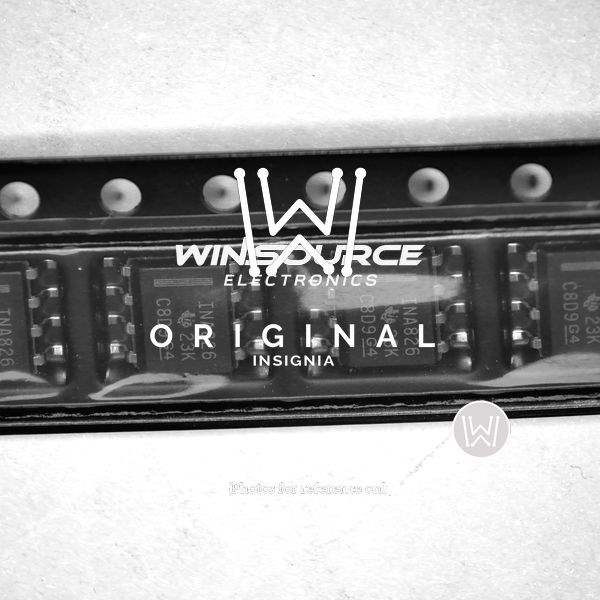

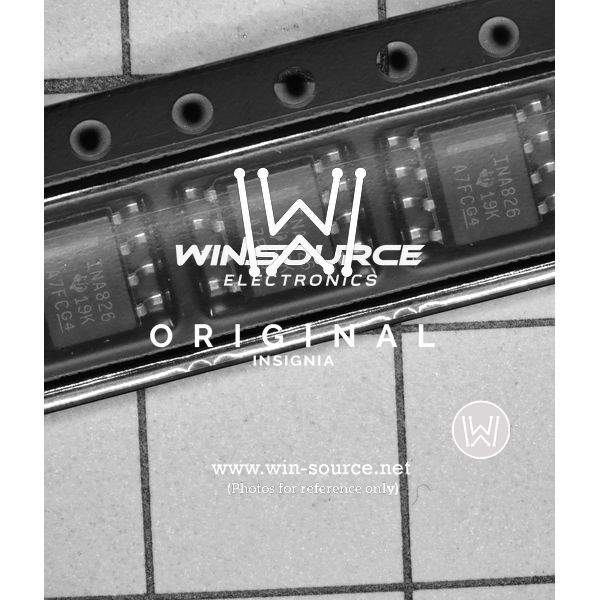

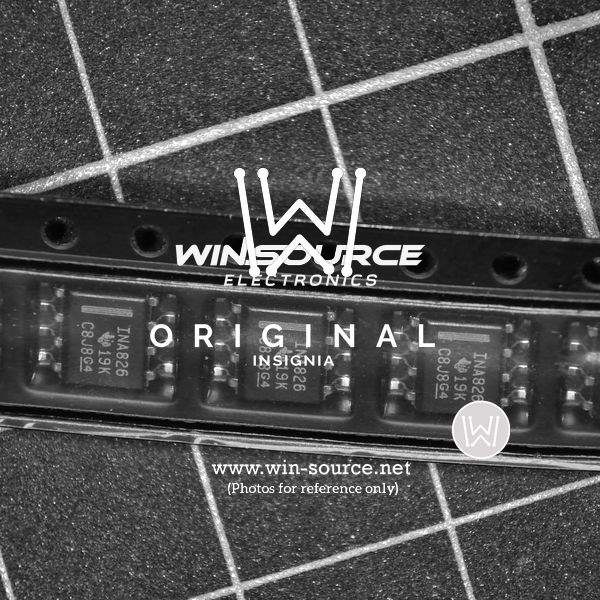

Same model may have multiple batches, images only for reference.

INA826AIDR

Part No INA826AIDR
Manufacturer Texas Instruments
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP INSTR 1MHZ RRO 8SOIC
Datasheet
INA826AIDR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Amplifier Type Instrumentation
Number of Circuits 1
Output Type Rail-to-Rail
Slew Rate 1 V/μs
-3db Bandwidth 1MHz
Current - Input Bias 35nA
Voltage - Input Offset 40μV
Operating Supply Current 200μA
Channel Output Current 16mA
Supply Voltage - Operating 2.7 V to 36 V, ±1.35 V to 18 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Case / Package 8-SOIC
Win Source Part Number 017312-INA826AIDR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian INA826AIDR CAD Model

Description

The INA826AIDR is a high-performance, precision instrumentation amplifier from Texas Instruments.

  • Supply Range (Single): 2.7V to 36V
  • Supply Range (Dual): ±1.35V to ±18V
  • Offset Voltage: 200µV
  • Common-Mode Rejection Ratio (CMRR): Up to 114dB
  • Onboard Voltage Reference: 2.5V ±0.2%
  • Package: 8-pin SOIC
  • RoHS Compliant: Yes
