Product Overview: INA180A2IDBVR by Texas Instruments

The INA180A2IDBVR is a state-of-the-art current-sense amplifier designed by Texas Instruments, renowned for its precision and reliability in various electronic applications. This high-performance component is ideal for cost-sensitive applications that require a compact and efficient solution for current measurement.

Key Features

• Supply Voltage Range: The device operates over a supply voltage range of 2.7V to 5.5V, making it versatile for use in both battery-powered and line-powered systems.
• Low Power Consumption: With a quiescent current of only 260 µA, the INA180A2IDBVR is optimized for energy efficiency, which is crucial for portable and battery-operated devices.
• Gain Options: This particular model, the A2 variant, comes with a fixed gain of 20V/V, providing a precise amplification of the differential input signal.
• Bandwidth: It offers a bandwidth of 350 kHz, enabling the INA180A2IDBVR to handle high-speed signals without significant delay, making it suitable for fast current-sensing applications.

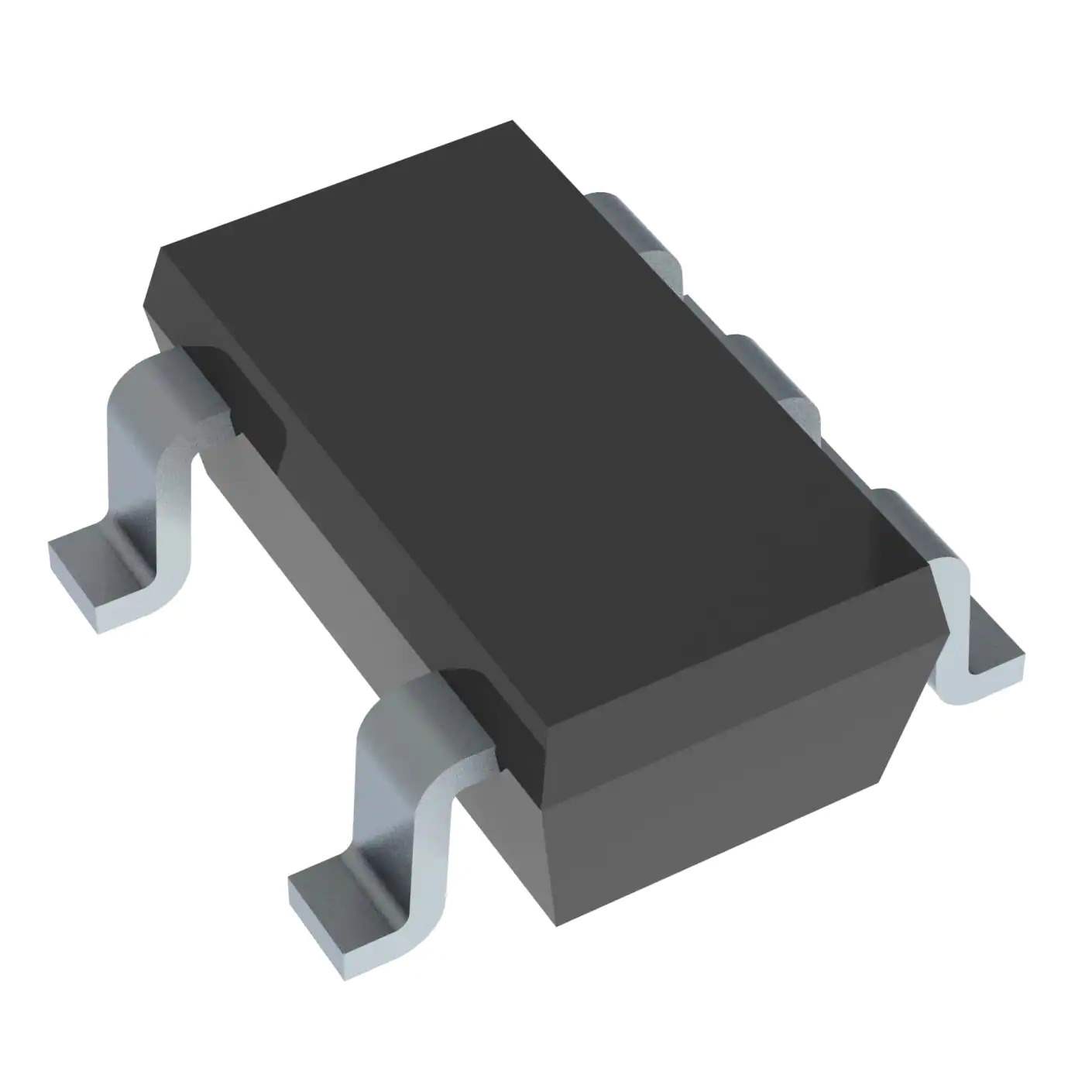

• Small Size: Housed in a tiny SOT-23 package, the INA180A2IDBVR is designed for space-constrained applications, ensuring a minimal footprint on the PCB.

Applications

The INA180A2IDBVR is widely used across various industries due to its versatility and high accuracy. Some common applications include:

• Power management in consumer electronics such as smartphones and laptops
• Overcurrent protection in battery chargers and management systems
• Motor control in industrial automation and automotive systems
• Energy management in smart power meters and IoT devices

Quality and Reliability

Texas Instruments is committed to delivering high-quality components that meet rigorous industry standards. The INA180A2IDBVR is no exception, offering excellent performance stability over its entire operating temperature range. Its robust design ensures reliability in the most demanding environments, providing engineers with a trusted solution for their current-sensing needs.

Whether you're designing a precision power management system or a robust motor control application, the INA180A2IDBVR from Texas Instruments is an excellent choice for your current sensing requirements, combining accuracy, efficiency, and a small form factor.
