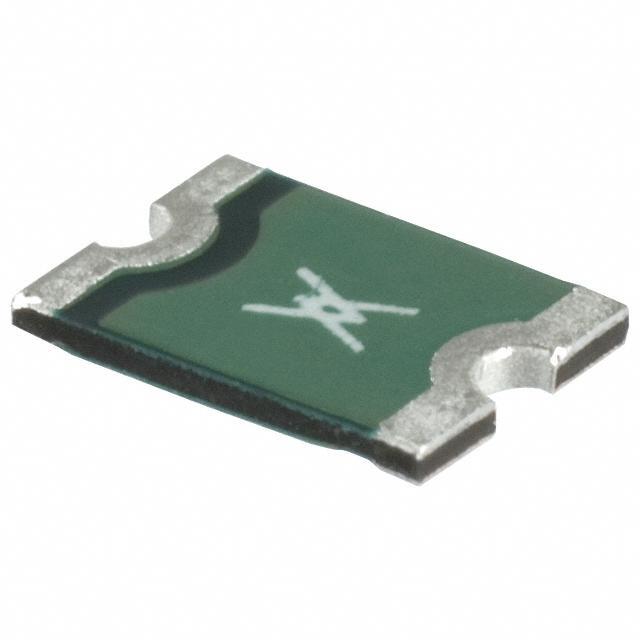

MINISMDC110F/24-2 TE Connectivity MINISMDC110F/24-2 Real Image
MINISMDC110F/24-2 TE Connectivity MINISMDC110F/24-2 Real Image
Same model may have multiple batches, images only for reference.

MINISMDC110F/24-2

Part No MINISMDC110F/24-2
Manufacturer TE Connectivity
Catalog PTC Resettable Fuses
Description PTC Resettable Fuse 1.1A(hold) 2.2A(trip) 24VDC 100A 0.8W 0.5s 0.06Ohm SMD Solder Pad 1812 T/R Automotive / POLYSWITCH RESET 1.1A 24V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer TE Connectivity
Standard Package 1
Category Circuit Protection
Family PTC Resettable Fuses
Series PolySwitch
Packaging Reel
Voltage - Max 24V
Current - Max 20A
Current - Hold (Ih) (Max) 1.1A
Current - Trip (It) 2.2A
R Min/Max 0.060 ~ 0.180 Ohm
Time to Trip 0.5s
Package 1812 (4532 Metric) Concave
Catalog PolySwitch Surface Mount
Win Source Part Number 084136-MINISMDC110F/24-2
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Industrial, Computers & Computer Peripherals, Consumer Electronics, Imaging, Video & Vision, Communications & Networking, Automotive
Family Name MINISMDC
Introduction Date November 09, 2015
Country of Origin China
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian MINISMDC110F/24-2 CAD Model

Description

TE Connectivity's 084136-MINISMDC110F/24-2 PTC Resettable Fuse is part of the PolySwitch series and has a voltage rating of 24V.

  • Series: PolySwitch
  • Voltage Rating: 24V
  • Supply and Demand Status: balanced
