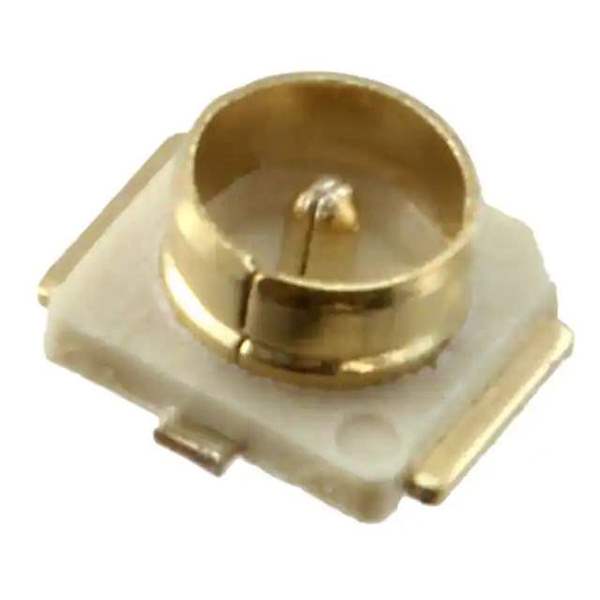

1909763-1 Real Image
Same model may have multiple batches, images only for reference.

1909763-1

Part No 1909763-1
Manufacturer TE Connectivity
Catalog Coaxial Connectors (RF) - Assemblies
Description CONN UMCC JACK STR 50OHM SMD / U.FL (UMCC) Connector Jack, Male Pin 50Ohm Surface Mount Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Coaxial Connectors (RF) - Coaxial Connector (RF) Assemblies
Mfr TE Connectivity
Package Tape & Reel
Product Status Active
Connector Style U.FL (UMCC)
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Type Surface Mount
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Housing Color Ivory
Center Contact Material Copper Alloy
Body Material Copper Alloy
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -40°C ~ 90°C
Voltage Rating 60 V
Mating Cycles 30
Insertion Loss 0.24dB
Base Product Number 1909763
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4010
Win Source Part Number 854229-1909763-1
Ultra Librarian 3D Model Ultra Librarian 1909763-1 CAD Model

Description

The 854229-1909763-1 is a U.FL (UMCC) snap-on coaxial connector from TE Connectivity.

  • Voltage Rating: 60V
  • Frequency Range: Up to 6 GHz
  • Contact Termination: Solder
  • Package: Tape & Reel
  • Package Quantity: 5,000 pieces
  • Mounting: Surface Mount
  • Impedance: 50 Ohm
