NL565050T-222J-PF TDK Corporation
Same model may have multiple batches, images only for reference.

NL565050T-222J-PF

Part No NL565050T-222J-PF
Manufacturer TDK Corporation
Catalog Fixed Inductors
Description FIXED IND 2.2MH 55MA 35 OHM SMD
Datasheet
NL565050T-222J-PF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer TDK Corporation
Packaging Reel - TR
Status Obsolete(EOL)
Type Wirewound
Inductance 2.2mH
Tolerance ±5%
Current Rating 55mA
DC Resistance (DCR) 35 Ohm Max
Q @ Freq 30 @ 252kHz
Frequency - Self Resonant 1.2MHz
Temperature Range - Operating -40°C to 105°C
Frequency - Test 252kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 138822-NL565050T-222J-PF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name NL
Introduction Date July 26, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian NL565050T-222J-PF CAD Model

Description

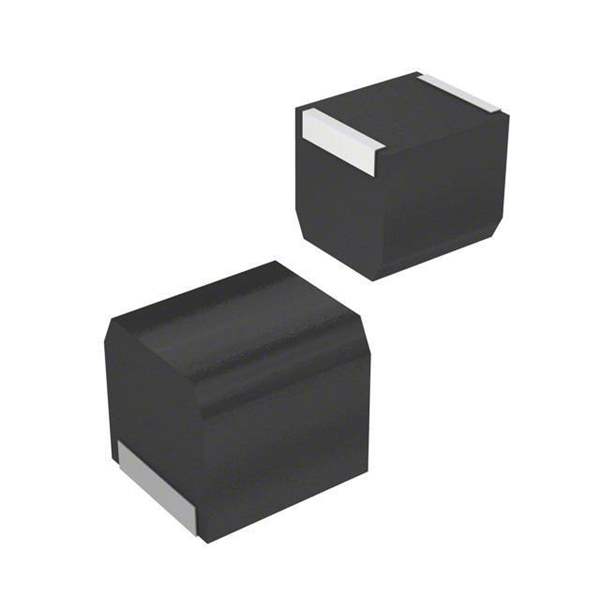

The NL565050T-222J-PF is a wirewound inductor that comes with a current rating of 55mA and an inductance of 2.2mH from TDK Corporation.

  • Component: Wirewound Inductor
  • Manufacturer: TDK Corporation
  • Current Rating: 55mA
  • Inductance: 2.2mH
  • Height: 5.00mm
  • Mounting: SMD (SMT) technology
  • Tolerance: ±5%
  • Q @ Freq: 30 @ 252kHz
  • Self-Resonant Frequency: 1.2MHz
  • Test Frequency: 252kHz
  • DC Resistance (DCR): 35 Ohm Max
  • Temperature Range: -40°C to 105°C
  • Series: NL series
  • Category: Inductors, Coils, Chokes
  • Status: Obsolete (EOL)
  • Introduction Date: July 26, 2001
  • Alternative Parts: NL565050B-222K-S, NL565050B-222J-S, and BCL565050-222M
