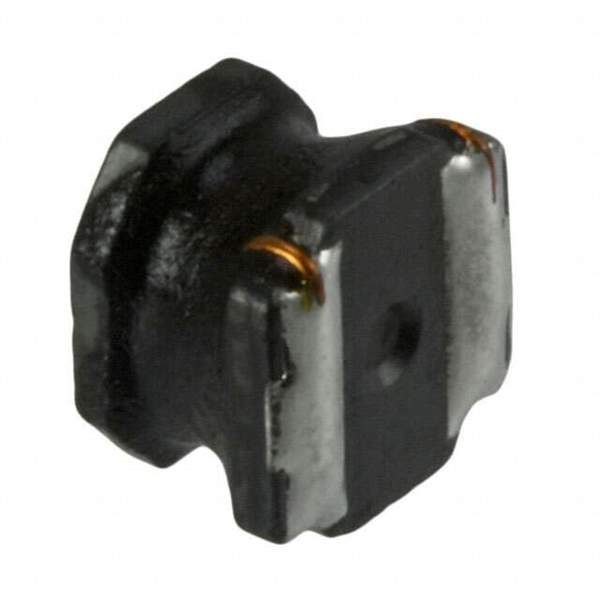

NR5040T220M Real Image
Same model may have multiple batches, images only for reference.

NR5040T220M

Part No NR5040T220M
Manufacturer Taiyo Yuden
Catalog Fixed Inductors
Description FIXED IND 22UH 1.4A 163.8 MOHM
Datasheet
NR5040T220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 1.4A
Current - Saturation 1.6A
DC Resistance (DCR) 163.8 mOhm Max
Frequency - Self Resonant 9MHz
Temperature Range - Operating -25°C to 120°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 004077-NR5040T220M
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian NR5040T220M CAD Model

Description

The Taiyo Yuden NR5040T220M is a wirewound inductor designed for use in electronic circuits. It has an inductance of 22μH and a current rating of 1.4A.

  • Popularity Rating: Medium
  • Supply and Demand Status: Limited
  • Package: Reel package with 1,500 pieces per package
  • Recommendation: Purchase from a reliable source to ensure authenticity
