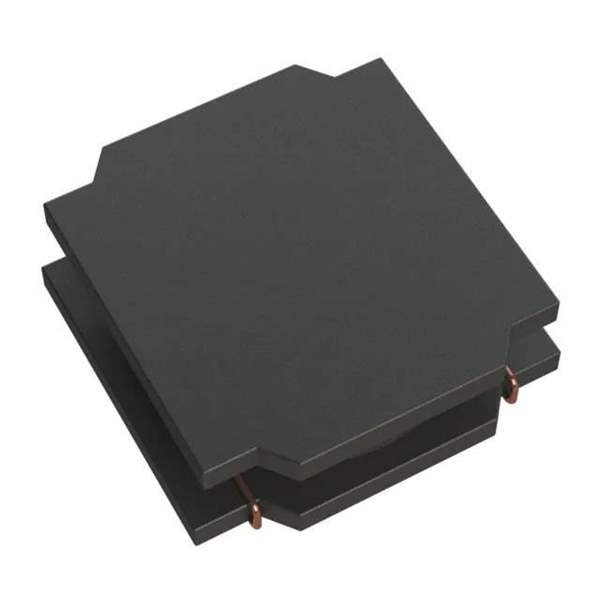

SWPA4020S1R5NT Real Image
Same model may have multiple batches, images only for reference.

SWPA4020S1R5NT

Part No SWPA4020S1R5NT
Manufacturer Sunlord
Catalog Fixed Inductors
Description FIXED IND 1.5UH 1.98A 46MOHM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Sunlord
Series SWPA
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 1.5 µH
Tolerance ±30%
Current Rating (Amps) 1.98 A
Current - Saturation (Isat) 4.45A
Shielding Shielded
DC Resistance (DCR) 46mOhm Max
Frequency - Self Resonant 71MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.157" L x 0.157" W (4.00mm x 4.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 898611-SWPA4020S1R5NT
Ultra Librarian 3D Model Ultra Librarian SWPA4020S1R5NT CAD Model

Description

The SWPA4020S1R5NT is a drum core, wirewound inductor from Sunlord's SWPA series.

  • Type: shielded inductor
  • Size: 0.157" L x 0.157" W (4.00mm x 4.00mm)
  • Inductance: 1.5 µH
  • Tolerance: ±30%
  • Maximum Seated Height: 0.079" (2.00mm)
  • DC Resistance (DCR): 46mOhm
  • Operating Temperature Range: -40°C to 125°C
  • Current Rating: 1.98 A
  • Saturation Current (Isat): 4.45A
  • Package Type: nonstandard
  • Packaging: tape & reel packaging
  • Product Status: active
