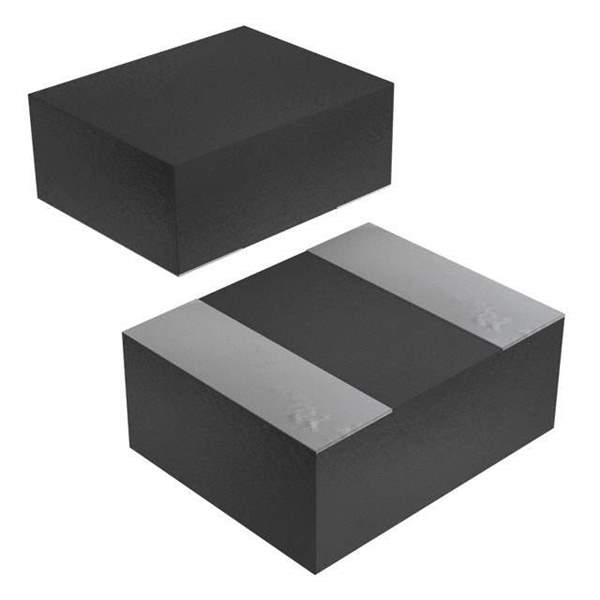

252012CDMCDDS-1R0MC Real Image
Same model may have multiple batches, images only for reference.

252012CDMCDDS-1R0MC

Part No 252012CDMCDDS-1R0MC
Manufacturer Sumida America Components Inc.
Catalog Fixed Inductors
Description FIXED IND 1UH 4.2A 42 MOHM SMD / 1 µH Shielded Molded Inductor 4.2 A 42mOhm Max 1008 (2520 Metric)
Datasheet
252012CDMCDDS-1R0MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Sumida America Components Inc.
Packaging Reel - TR
Type Molded
Material - Core Metal Composite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 4.2 A
Current - Saturation (Isat) 4.6A
Shielding Shielded
DC Resistance (DCR) 42mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting Surface Mount
Case / Package 1008 (2520 Metric)
Supplier Device Package 1008
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 308-2603-6,308-2603-2,308-2603-1
Standard Package 3,000
Win Source Part Number 1329256-252012CDMCDDS-1R0MC
Ultra Librarian 3D Model Ultra Librarian 252012CDMCDDS-1R0MC CAD Model

Description

The Sumida America Components Inc. 1329256-252012CDMCDDS-1R0MC is a molded, shielded fixed inductor with a metal composite core.

  • Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
  • Height: 0.047" (1.20mm)
  • Inductance: 1 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 42mOhm Max
  • Current Rating: 4.2 A
  • Mounting Type: Surface Mount
  • Standard Package: 3,000
  • Operating Temperature: -55°C ~ 125°C
  • ROHS3 Compliant: Yes
