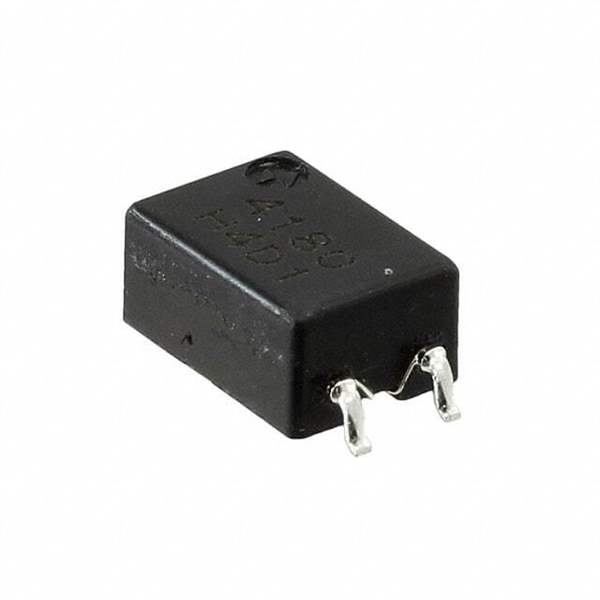

ESMIT-4180/A
Same model may have multiple batches, images only for reference.

ESMIT-4180/A

Part No ESMIT-4180/A
Manufacturer Sumida America Components Inc.
Catalog Pulse Transformers
Description XFMR MODEM SMD
Datasheet
ESMIT-4180/A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Sumida America Components Inc.
Series CBM
Package Tape & Reel
Product Status Active
Transformer Type Data/Voice Coupling
Inductance 120µH
Mounting Type Surface Mount
Size / Dimension 0.205" L x 0.280" W (5.20mm x 7.10mm)
Height - Seated (Max) 0.138" (3.50mm)
Temperature Range - Operating -20°C ~ 105°C
Standard Package 500 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 852891-ESMIT-4180/A
Ultra Librarian 3D Model Ultra Librarian ESMIT-4180/A CAD Model

Description

The 852891-ESMIT-4180/A is a pulse transformer from the CBM series by Sumida America Components Inc. It is designed for data/voice coupling applications.

  • Series: CBM
  • Application: Data/Voice Coupling
  • Size: 0.205" L x 0.280" W (5.20mm x 7.10mm)
  • Height: 0.138" (3.50mm)
  • Mounting Type: Surface Mount
  • Inductance: 120µH
  • Temperature Range: -20°C to 105°C
  • Package: Tape & Reel
  • Standard Package Quantity: 500 pcs
  • Product Status: Active
  • Manufacturer: Sumida America Components Inc.
