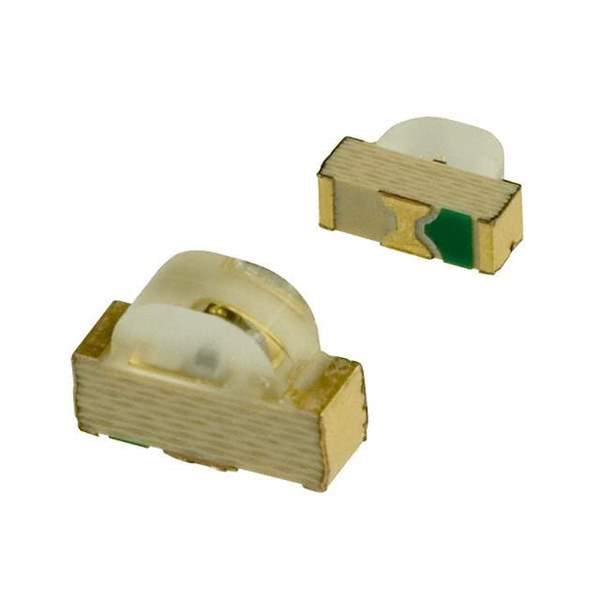

PG1101F-TR

Part No PG1101F-TR
Manufacturer Stanley Electric Co
Catalog LED Indication - Discrete
Description LED GREEN CLEAR 1208 R/A SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Stanley Electric Co
Packaging Reel - TR
Status Active
Color Green
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 5.2mcd
Lens Style/Size Rectangle with Domed Top, 2.00mm x 1.00mm
Forward Voltage 2.1V
Current - Test 20mA
Viewing Angle 149°, 130°
Mounting Surface Mount, Right Angle
Wavelength - Dominant 567nm
Wavelength - Peak 560nm
Height (Max) 1.00mm
Win Source Part Number 026672-PG1101F-TR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PG1101F-TR CAD Model

Description

The PG1101F-TR is a LED from Stanley Electric Co.

  • Color: green
  • Mounting Style: surface mount, right-angle
  • Forward Voltage: 2.1V
  • Viewing Angle: 149° and 130°
  • Lens Color: colorless
  • Lens Transparency: clear
  • Millicandela Rating: 5.2mcd
  • Lens Style/Size: rectangle with domed top, 2.00mm x 1.00mm
  • Current-Test: 20mA
  • Wavelength-Dominant: 567nm
  • Wavelength-Peak: 560nm
  • Component Category: optoelectronic
  • Component Status: active
  • Market Usage: common-used part
  • Popularity: high popularity
