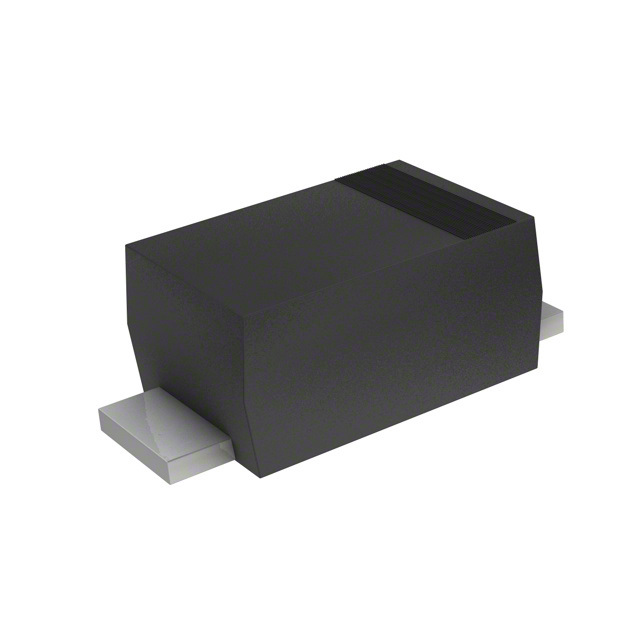

1N5819W SMC Diode Solutions 1N5819W Real Image1 1N5819W Real Image2
1N5819W SMC Diode Solutions 1N5819W Real Image1 1N5819W Real Image2
Same model may have multiple batches, images only for reference.

1N5819W

Part No 1N5819W
Manufacturer SMC Diode Solutions
Catalog Diodes, Rectifiers - Single
Description 1A, 45V, SOD-123FL, SCHOTTKY REC / Diode Schottky 40 V 1A Surface Mount SOD-123FL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr SMC Diode Solutions
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 500 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 40 V
Capacitance @ Vr, F 110pF @ 4V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Operating Temperature - Junction -55°C ~ 150°C
RoHS Status Not applicable
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names -1765-1N5819WDKR,1655-1N5819WCT,1655-1N5819WTRCT,-1765-1N5819WCT,-1765-1N5819WTRCT,1655-1N5819WDKR,1655-1N5819WTRCT-ND,1655-1N5819WTRDKR-ND,-1765-1N5819WTRCT-ND,-1765-1N5819WTR,1N5819WTR,-1765-1N5819WTRDKR,1655-1N5819WTR,1655-1N5819WTRDKR,-1765-1N5819WTRDKR-ND,-1765-1N5819WTR-ND
Standard Package 3,000
Win Source Part Number 957791-1N5819W
Ultra Librarian 3D Model Ultra Librarian 1N5819W CAD Model

Description

The SMC Diode Solutions 1N5819W Schottky diode is designed for use in rectifiers, with a voltage rating of 40V and an average rectified current (Io) of 1A.

  • Manufacturer: SMC Diode Solutions
  • Application: rectifiers
  • Voltage Rating: 40V
  • Average Rectified Current (Io): 1A
  • Forward Voltage (Vf): 500 mV @ 1 A
  • Reverse Leakage Current: 100 µA @ 40 V
  • Capacitance: 110pF @ 4V, 1MHz
  • Operating Temperature: -55°C to 150°C
  • MSL Level: 1 (unlimited)
