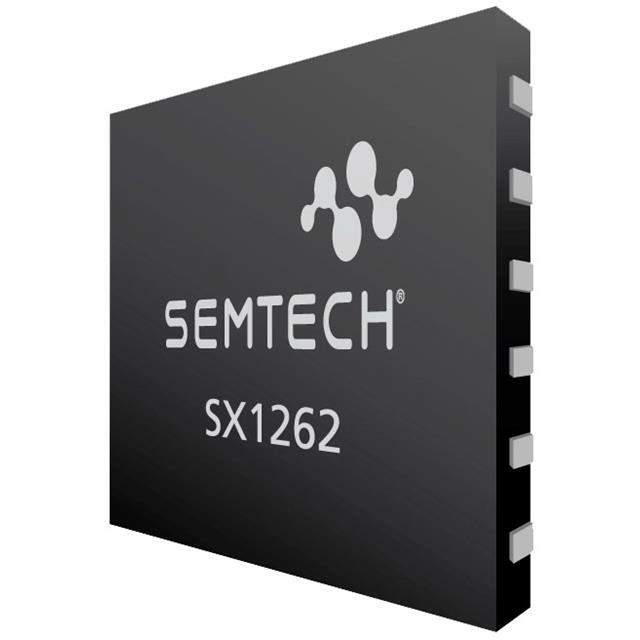

SX1262IMLTRT Real Image SX1262IMLTRT Real Image
SX1262IMLTRT Real Image SX1262IMLTRT Real Image
Same model may have multiple batches, images only for reference.

SX1262IMLTRT

Part No SX1262IMLTRT
Manufacturer Semtech Corporation
Catalog RF Transceiver ICs
Description IC RF TXRX ISM / Long Range, Low Power, sub-GHz RF Transceiver
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Semtech Corporation
Packaging Reel
Type TxRx Only
RF Family/Standard General ISM
Protocol LoRaWAN
Modulation FSK, GFSK
Frequency 150MHz ~ 960MHz
Data Rate (Maximum) 300kbps
Power - Output 22dBm
Sensitivity -148dBm
Serial Interfaces SPI
Supply Voltage (V) 1.8V ~ 3.7V
Current - Receiving 4.2mA ~ 10.1mA
Current - Transmitting 32mA ~ 118mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 24-VFQFN Exposed Pad
Supplier Device Package 24-QFN (4x4)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801788-SX1262IMLTRT
Ultra Librarian 3D Model Ultra Librarian SX1262IMLTRT CAD Model

Description

The Semtech Corporation 801788-SX1262IMLTRT is a TxRx only product that comes in reel packaging.

  • Frequency Range: 150MHz to 960MHz
  • Protocol: LoRaWAN
  • Power Output: 22dBm
  • Sensitivity: -148dBm
  • Receiving Current: 4.2mA to 10.1mA
  • Modulation: FSK and GFSK
  • Serial Interface: SPI
  • Transmitting Current: 32mA to 118mA
  • Package: 24-QFN (4x4)
  • Temperature Range: -40°C to 85°C
  • Manufacturer Pack Quantity: 3,000
