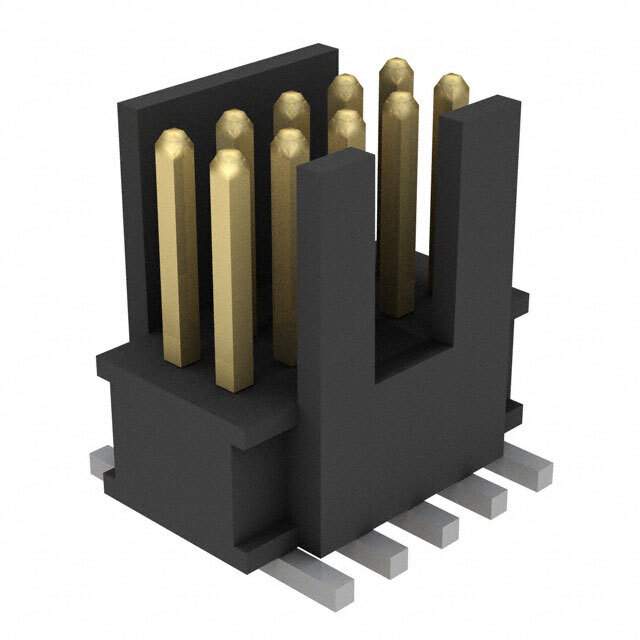

The FTSH-105-01-F-DV-K-TR is a 10-position male pin header connector from Samtec Inc.'s FTSH series.

• Description: It is designed for board-to-board or cable connections with a pitch of 0.050" (1.27mm).
• Features: The FTSH-105-01-F-DV-K-TR features a cuttable header design and a keying shroud for polarization.
• Current Rating: It has a current rating of 3.4A per contact.
• Contact Material: Made of phosphor bronze contact material with a gold finish for reliable electrical performance.
• Mounting Type: The connector is surface mountable and comes in a tape and reel package.
• Insulation Material: It is made of liquid crystal polymer (LCP) insulation material with a flammability rating of UL94 V-0.
• Temperature Range: The FTSH-105-01-F-DV-K-TR operates in a temperature range of -55°C to 125°C.
• Applications: Suitable for applications such as computer peripherals, telecommunications equipment, and industrial machinery.
