Overview

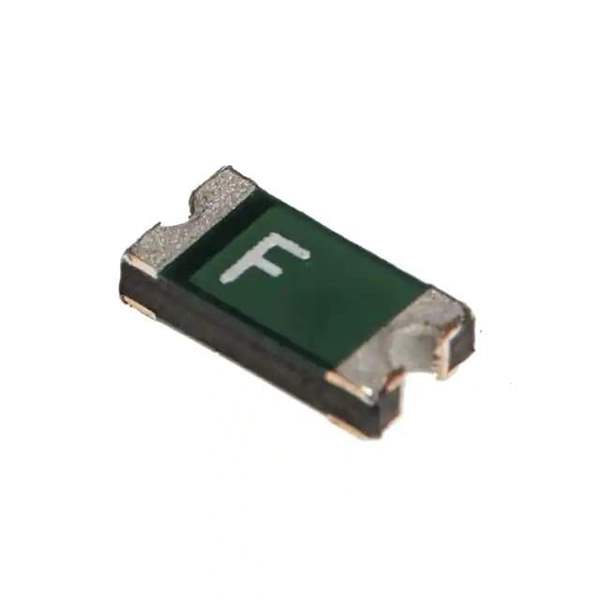

The FSMD005-1206-R from RFE/Fuzetec is a surface-mount resettable PTC (polymeric positive temperature coefficient) fuse in a 1206 package. It is designed to provide overcurrent and short-circuit protection in low-voltage electronic circuits. Under normal operating conditions, the device presents a low resistance and allows current to flow. When an overcurrent event occurs, the PTC heats up, its resistance increases sharply, and it effectively limits the current to protect downstream components. Once power is removed and the fault is cleared, the fuse cools and automatically resets, eliminating the need for replacement. This part is typically used in DC circuits such as digital electronics, interface protection, and consumer or industrial control boards.

Applications

• Overcurrent protection on USB, serial, and other low-voltage I/O ports
• Protection of microcontroller and FPGA power rails on densely populated PCBs
• Current limiting in consumer electronics such as set-top boxes, routers, and handheld devices
• Industrial control modules, sensors, and PLC I/O protection
• Battery-powered equipment and portable instruments to guard against short circuits
• Telecom and networking cards where resettable overcurrent protection is required

Alternatives & Replacement

Depending on availability, lifecycle status, or specific design constraints, alternative resettable PTC fuses may be considered. Substitutes should be evaluated for hold current, trip current, maximum voltage rating, time-to-trip, operating temperature range, and package size to ensure safe and reliable operation.

Recommended alternatives:

• RFE/Fuzetec FSMD035-1206-R – Functional equivalent; same manufacturer and 1206 SMD form factor. Suitable when a similar resettable PTC with different current ratings is acceptable in the design.
• RFE/Fuzetec FSMD030-2920-R – Higher compatibility on electrical specs, but larger 2920 package; appropriate when board space and layout can be adjusted.
• Yageo SMD0805B010TF – Compact SMD PTC in 0805 size; requires layout and possibly rating review before use.
• Yageo SMD1812B110TF – Larger footprint and different current rating; appropriate only with redesign.
• Littelfuse Inc. PICOSMDC110S-2 – Resettable PTC alternative from another supplier; mechanical and electrical parameters must be cross-checked.
• Bourns Inc. MF-NSML300-2, MF-PSMF010X-2, MF-MSMF010-2 – Similar function but different package and ratings; generally for new designs or board revisions.
• Littelfuse Inc. 1210L050YR, FEMTOSMDC012F-2 – Other PTC families that may serve as substitutes with layout and spec verification.

Engineering note: Always confirm pinout, package dimensions (1206 vs. other SMD sizes), hold/trip currents, maximum operating voltage, and time-current characteristics before dropping in a replacement. Even when a part is listed as a functional equivalent, verify that the protection behavior matches your system’s inrush current, fault profile, and safety requirements.
