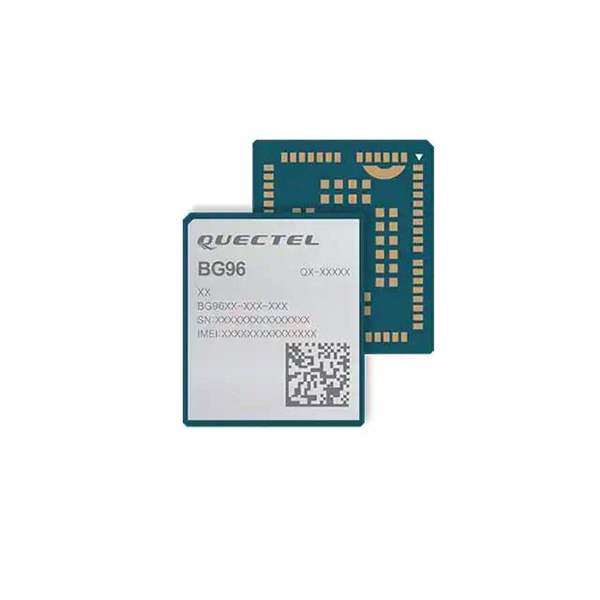

BG96MA-128-SGN Real Image
Same model may have multiple batches, images only for reference.

BG96MA-128-SGN

Part No BG96MA-128-SGN
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELLULAR SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
Product Status Active
Programmable Not Verified
RF Family/Standard Cellular
Protocol EDGE, GPRS, GSM, HSPA, LTE, UMTS
Frequency 850MHz, 900MHz, 1.8GHz, 1.9GHz
Data Rate 375kbps
Power - Output 23dBm
Sensitivity -117dBm
Serial Interfaces ADC, GPIO, I²C, PCM, UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3.3V ~ 4.3V
Current - Receiving 16mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case Module
Base Product Number BG96
Standard Package 250 pcs
MSL Level 3 (168 Hours)
ECCN 5A992C SC
HTSUS 8517.62.0090
Win Source Part Number 847088-BG96MA-128-SGN
Ultra Librarian 3D Model Ultra Librarian BG96MA-128-SGN CAD Model

Description

The BG96MA-128-SGN is an RF transceiver module suitable for wireless communication applications. It falls under the RF and Wireless category and is part of the Cellular RF family/standard.

  • Voltage Supply: 3.3V to 4.3V
  • Power Output: 23dBm
  • Protocols Supported: EDGE, GPRS, GSM, HSPA, LTE, UMTS
  • Data Rate: 375kbps
  • Receiving Current: 16mA
  • Sensitivity: -117dBm
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Antenna: Not Included
  • Programmable: No
  • Serial Interfaces: ADC, GPIO, I²C, PCM, UART, USB
