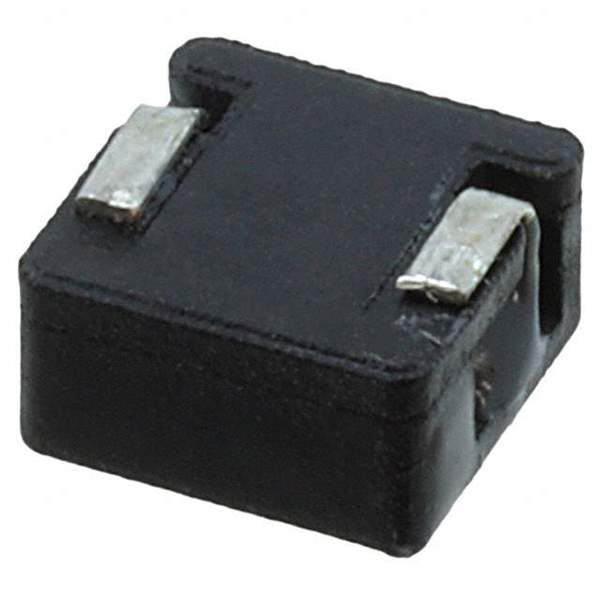

PG0083.232NLT Real Image
Same model may have multiple batches, images only for reference.

PG0083.232NLT

Part No PG0083.232NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 2.3UH 7A 18 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Power
Packaging Tape and Reel
Type Wirewound
Inductance 2.3μH
Tolerance ±25%
Current Rating (Amps) 7A
Current - Saturation 11.5A
Shielding Unshielded
DC Resistance (DCR) 18mOhm Max
Temperature Range - Operating -40°C ~ 95°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Maximum) 0.157" (4.00mm)
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 715747-PG0083.232NLT
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PG0083.232NLT CAD Model

Description

The Pulse Electronics Power 673566 is an inductor that is packaged in tape and reel.

  • Type: wirewound
  • Shielding: unshielded
  • Inductance: 2.3μH
  • Inductance Tolerance: ±25%
  • Current Saturation: 11.5A
  • DC Resistance (DCR): 18mOhm Max
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 1,000
