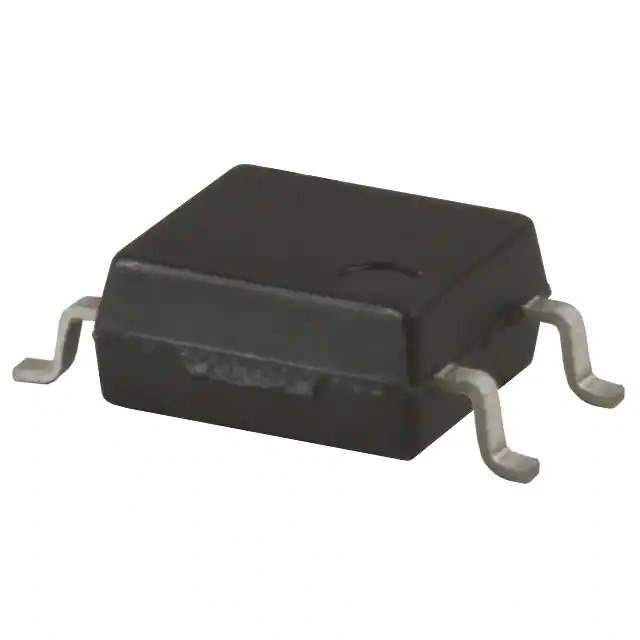

AQY282SX Real Image AQY282SX real image AQY282SX label picture AQY282SX real image17506
AQY282SX Real Image AQY282SX real image AQY282SX label picture AQY282SX real image17506
Same model may have multiple batches, images only for reference.

AQY282SX

Part No AQY282SX
Manufacturer Panasonic
Catalog Solid State Relays
Description SSR RELAY SPST-NO 500MA 0-60V / Solid State SPST-NO (1 Form A) 4-SOP (0.173", 4.40mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Panasonic
Series PhotoMOS™ AQY
Package Tape & Reel
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.14VDC
Voltage - Load 0 V ~ 60 V
Load Current 500 mA
On-State Resistance (Max) 2.5 Ohms
Termination Style Gull Wing
Package / Case 4-SOP (0.173", 4.40mm)
Supplier Device Package 4-SOP
Base Product Number AQY282
Standard Package 1,000 pcs
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 564475-AQY282SX
Ultra Librarian 3D Model Ultra Librarian AQY282SX CAD Model

Description

The PhotoMOS™ AQY series from Panasonic is a solid-state relay designed for various applications.

  • Voltage Input: 1.14VDC
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • On-State Resistance: 2.5 Ohms
  • Load Current: 500mA
  • Voltage Load Range: 0V to 60V
  • Mounting: Surface mountable
  • Package: 4-SOP
