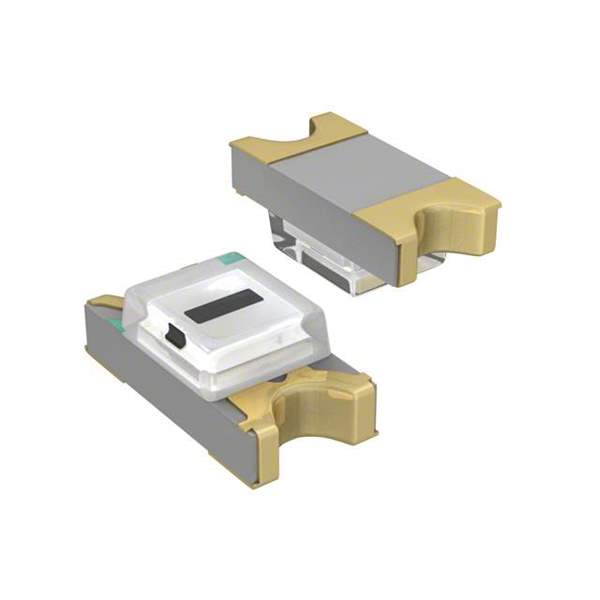

The SFH2701 is a silicon NPN epitaxial phototransistor manufactured by OSRAM Opto Semiconductors. It's designed for applications requiring detection of infrared radiation. This phototransistor converts light energy into an electrical signal, making it suitable for various sensing and control applications.

Applications

• Light Barriers: Used in safety systems to detect interruptions in a beam of light.
• Optical Switches: Employed in switches activated by light.
• Counters: Used in counting systems where light interruption indicates a count.
• Position Sensors: Utilized in detecting the position of an object based on light levels.
• Remote Control Systems: Used in IR receivers for remote control devices.

Features

• High Sensitivity: Detects even low levels of infrared radiation.
• Fast Switching Speed: Responds quickly to changes in light intensity.
• Narrow Angle of Half Intensity: Provides focused detection.
• Standard T-1 3/4 Package: Easy to mount and integrate into circuits.
• Operating Wavelength: Optimized for infrared light.
• Lead (Pb)-Free Package

Benefits

• Reliable Detection: Provides consistent and accurate detection of infrared light.
• Precise Switching: Enables accurate control in optical switching applications.
• Easy Integration: Standard package simplifies circuit design and assembly.
• Durable Construction: Robust design ensures long-term reliability.
• Compliance: RoHS compliant ensuring environmental safety.

Technical Specifications

The SFH2701 typically has a collector-emitter voltage (VCEO) of 30V, a collector current (IC) of 50mA, and a power dissipation of 100mW. Its spectral sensitivity is optimized for wavelengths around 880 nm to 950 nm, commonly used in infrared LEDs. The angle of half intensity is typically ±20 degrees, providing a focused detection area. The response time is typically a few microseconds, enabling fast switching speeds. The operating temperature range is usually between -40°C and +85°C, allowing for use in a variety of environmental conditions. The package is a standard T-1 3/4 (5mm) through-hole package, making it easy to solder and mount on printed circuit boards. The device is also sensitive to ambient visible light, so proper shielding might be necessary in some applications.
