ON Semiconductor SESD9L5.0ST5G - ESD Protection Diode

The SESD9L5.0ST5G from ON Semiconductor is a state-of-the-art ESD protection diode designed to safeguard high-speed data lines and other sensitive circuits from electrostatic discharge (ESD) and other transient voltage events. This robust protection device is a must-have for any application where data integrity and component longevity are of paramount importance.

Key Features

• Low Clamping Voltage: The SESD9L5.0ST5G offers an extremely low clamping voltage, ensuring that sensitive components are well-protected from the damaging effects of ESD events.
• High Surge Capability: With a surge capability that meets or exceeds the IEC61000-4-2 Level 4 standard, this diode is capable of withstanding ESD strikes of ±8 kV (contact discharge) and ±15 kV (air discharge), providing robust protection for your electronic devices.

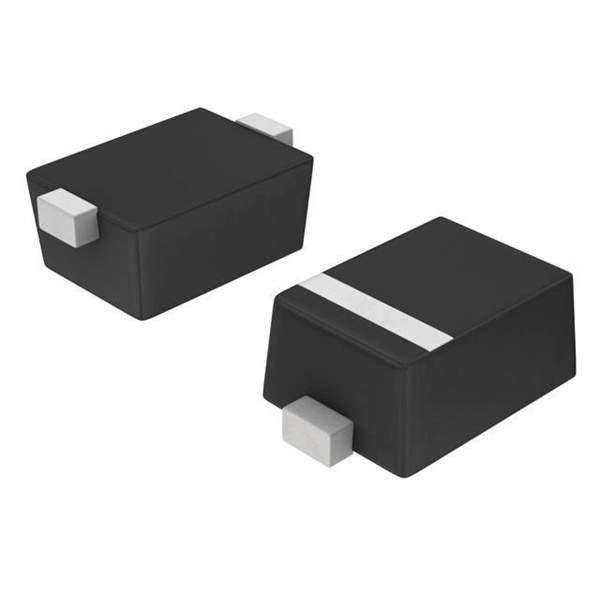

• Small Package Footprint: The device comes in an ultra-small SOD-923 package, which is ideal for space-constrained applications. Despite its small size, it does not compromise on performance.
• Fast Response Time: The SESD9L5.0ST5G boasts an extremely fast response time, ensuring that it reacts almost instantaneously to transient events, thus providing immediate protection to downstream components.
• Low Leakage Current: It features a low leakage current, minimizing power loss when the device is in standby mode, which is critical for battery-powered applications.

Applications

The ON Semiconductor SESD9L5.0ST5G is ideal for a wide range of applications where ESD protection is crucial. These include:

• USB 2.0 and 3.0 power and data line protection
• HDMI 1.3 and 1.4, DisplayPort, and Thunderbolt interface protection
• Smartphones, tablets, and other portable electronics
• Digital cameras and audio devices
• Wearable technology

ON Semiconductor's commitment to quality ensures that the SESD9L5.0ST5G ESD protection diode is a reliable choice for safeguarding your electronics from the potentially devastating effects of ESD. By incorporating this diode into your designs, you can enhance the durability and reliability of your products, providing peace of mind for both you and your customers.
