The MBR40L60CTG is a robust and efficient Schottky barrier rectifier designed by ON Semiconductor, a leading provider of semiconductor-based solutions. This component is part of the MBR series, known for its high performance in power rectification applications. The MBR40L60CTG is specifically engineered to meet the needs of high-frequency systems, where low forward voltage drop and energy efficiency are critical.

Key Features

• High Current Capability: With a forward current rating of 40A, the MBR40L60CTG is capable of handling high current loads, making it suitable for power supply applications in a range of industrial and commercial equipment.
• Low Power Loss: The low forward voltage drop (typically around 0.71V at 20A) ensures that power loss is minimized during operation, enhancing overall system efficiency.
• Dual Diode Configuration: This device features a common cathode dual diode configuration, which simplifies the design of bridge rectifiers and saves space on the circuit board.
• High-Temperature Operation: With an operating junction temperature range of -65°C to 175°C, the MBR40L60CTG can reliably function in environments with extreme temperatures.

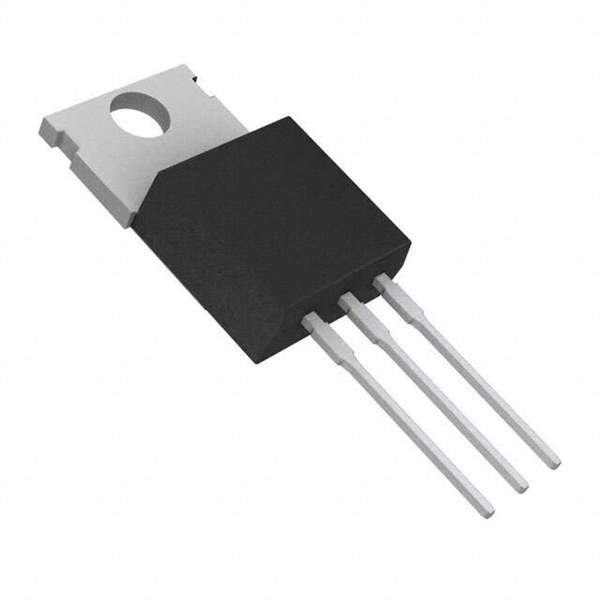

• Robust Package: Enclosed in a TO-220 package, the MBR40L60CTG offers excellent thermal performance and is designed to withstand mechanical stress, ensuring long-term reliability.

Applications

The MBR40L60CTG is versatile and can be used in a wide array of applications, including:

• Switch-mode power supplies (SMPS)
• Power factor correction (PFC) circuits
• DC-DC converters
• Free-wheeling diodes in inverters
• Battery charging systems
• Automotive applications
• Telecommunications equipment

Quality and Environmental Compliance

ON Semiconductor is committed to environmental stewardship and the MBR40L60CTG is manufactured in compliance with rigorous industry standards. It meets RoHS requirements, ensuring that it is free from hazardous substances and suitable for use in environmentally sensitive applications.
