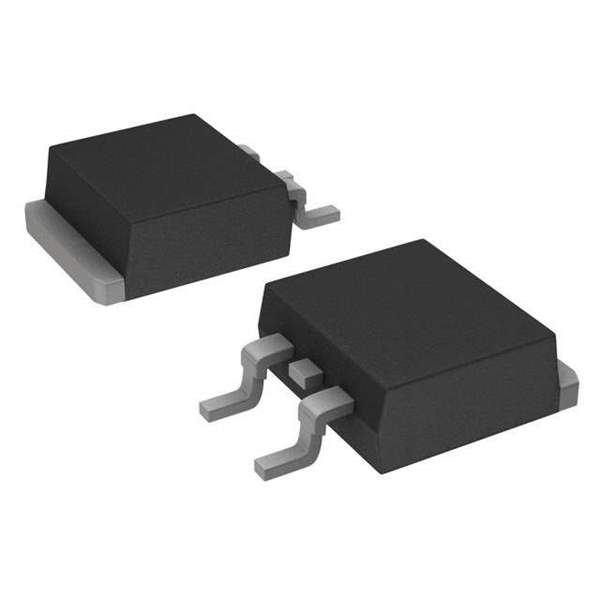

MBRB745-E3/81 Real Image
Same model may have multiple batches, images only for reference.

MBRB745-E3/81

Part No MBRB745-E3/81
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 45V 7.5A TO263AB / Diode Schottky 45 V 7.5A Surface Mount TO-263AB (D²PAK)
Datasheet
MBRB745-E3/81 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) 7.5A
Voltage - Forward (Vf) (Max) @ If 840 mV @ 15 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 45 V
Mounting Surface Mount
Case / Package TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package TO-263AB (D2PAK)
Operating Temperature - Junction -65°C ~ 150°C
Base Product Number MBRB745
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number MBRB745E381,MBRB745-E3/81GIDKR,MBRB745-E3/81GITR,MBRB745-E3/81-ND,MBRB745-E3/81GICT
Standard Package 800
Win Source Part Number 1325811-MBRB745-E3/81
Ultra Librarian 3D Model Ultra Librarian MBRB745-E3/81 CAD Model

Description

The MBRB745-E3/81 is a Schottky diode from Vishay General Semiconductor - Diodes Division that is used in Fast Recovery technology.

  • Maximum DC Reverse Voltage: 45 V
  • Average Rectified Current: 7.5A
  • Voltage Forward: 840 mV @ 15 A
  • Current Reverse Leakage: 100 μA @ 45 V
  • Package/Case: TO-263AB (D2PAK)
  • Mounting: surface mount technology
  • Operating Temperature Range: -65°C to 150°C
