Microchip Technology MCP609T-I/SL Operational Amplifier

The MCP609T-I/SL is a high-precision operational amplifier (op-amp) produced by Microchip Technology, a leading manufacturer of microcontroller, mixed-signal, analog, and Flash-IP integrated circuits. This device is designed to offer a perfect blend of performance, power efficiency, and versatility, making it suitable for a wide range of applications in the consumer, automotive, and industrial markets.

Key Features:

• Supply Voltage Range: The MCP609T-I/SL can operate on a single supply voltage ranging from 2.3V to 6.0V, or dual supplies of ±1.15V to ±3.0V, making it highly versatile for various circuit configurations.
• Quiescent Current: With a low quiescent current of just 1 µA (typical), it is an excellent choice for battery-powered and portable applications where power conservation is critical.
• Gain Bandwidth Product: It boasts a gain bandwidth product of 10 kHz, ensuring ample bandwidth for a variety of low-frequency applications.
• Extended Temperature Range: The operational temperature range of -40°C to +125°C allows the MCP609T-I/SL to perform reliably in extreme environments.
• Rail-to-Rail Input/Output: The device features Rail-to-Rail input and output swing, which provides the maximum possible dynamic range at any supply voltage. This is particularly useful in single-supply operations.

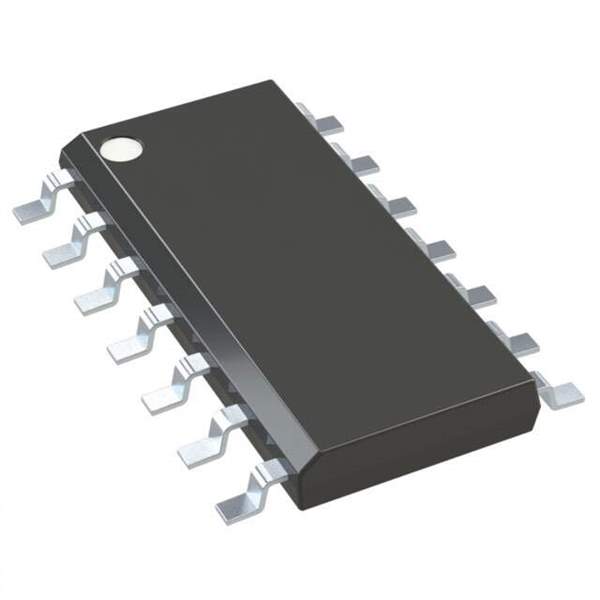

• Package: The MCP609T-I/SL comes in a 14-pin SOIC package, which is widely used and suitable for standard PCB layouts.

Applications:

The MCP609T-I/SL is well-suited for an array of applications, including:

• Portable Instrumentation
• Battery-Powered Devices
• Analog Filters
• Data Acquisition Systems
• Sensor Interfaces
• Medical Monitoring Equipment

With its precision performance and low power consumption, the MCP609T-I/SL from Microchip Technology is an excellent choice for designers who require a reliable op-amp that can operate efficiently across a wide range of operating conditions. Whether it's for simple signal conditioning, active filtering, or complex analog processing, the MCP609T-I/SL delivers consistent performance that engineers can trust.
